Applications

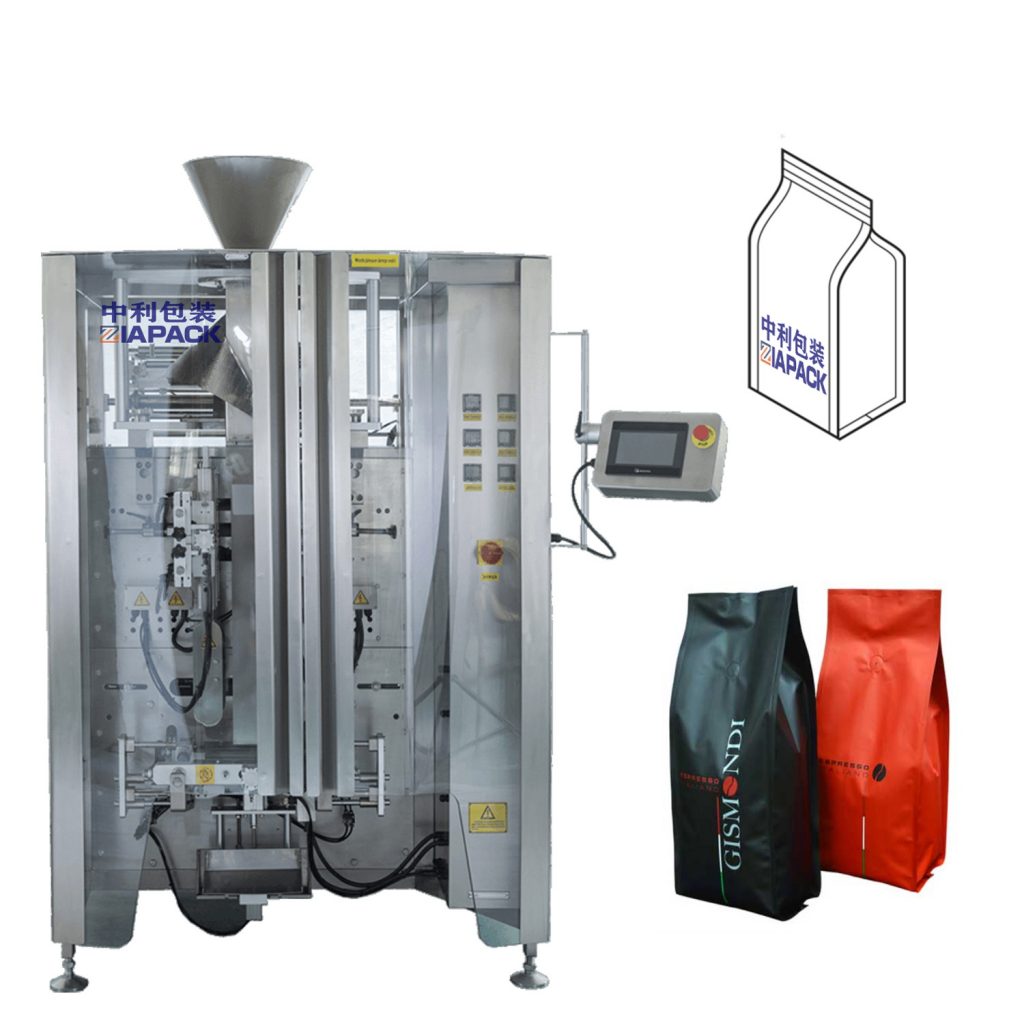

It's configured to produce four corner edge seal stand-up bags or block bottom bags with one-way coffee valve feature, it could spread coffee nature odor attracting people to enjoy your products. It’s available to equip with linear scale for packing coffee beans as well. (it’s optional)

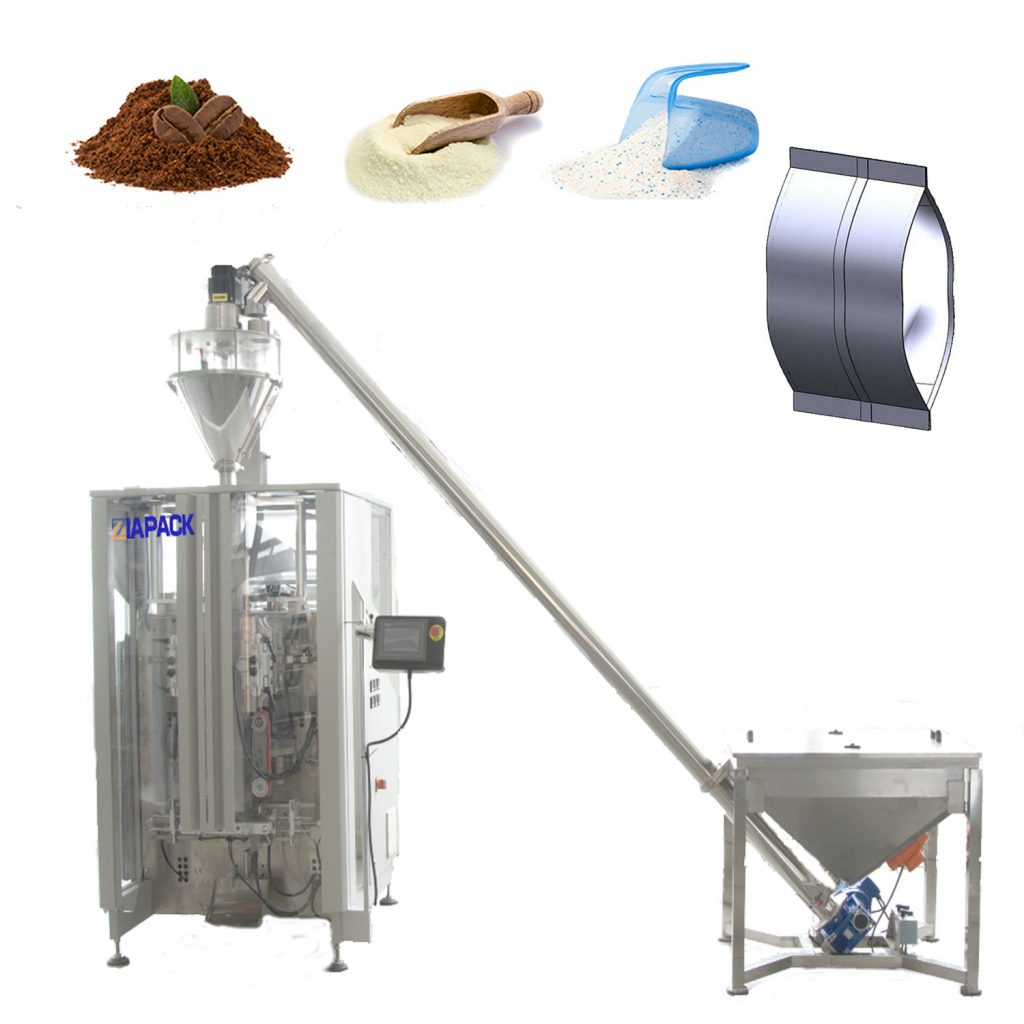

Automatic bagging line consisting of: Screw loading conveyor, Auger Filler dosing system, automatic bag making machine, coffee valve applicator, inclined take-away conveyor and accessories units.
Features
- High Performance at low costs
- Omron/Siemens PLC with Color Touch Screen Control
- User friendly Valve Applicator Integrated
- Independent Four Quad seal temp. zones
- Independent platen control-all platens adjust easily
- Full Servo Driven For Film Transportation
- Adjustable dwell time for better looking seals
- Simple and fast bag former changeover
- Vacuum pump assists for film pulling steadily
- Extremely compact design for a perfect control and synchronization with feeding systems
- All heat-sealable wrapping materials as available
- With date coder for printing batch numbers
Options
- Full AISI304# Stainless Steel Frame & Aluminum parts construction
- Perforation device (round hole, euro-slot, carrying- hole)
- Thermal transfer printer (Markem)
- Label applicator
- Chain bag
Technical Specifications
| Model: | ZLY520Q | ZLY-730 | |
| Bag type | Quad seal bag, gusseted bag | ||
| Operation Mode | Intermittent | ||
| Speed | Up to 50 bags/min | ||
| Quad Seal Bag | Length | 50 to 340mm (2.0 to 13.4in) | 100 to 420mm (4 to 16.5 in) |
| Width | 80 to 200mm (3.1 to 7.9in) | 100 to 240 mm (4 to 9.4 in) | |
| Depth | 50 to 100mm (2.0 to 3.9in) | 50 to 120 mm (2 to 4.7 in) | |
| Reel Film Width: | Width and depth combinations are limited by the overall 540mm (21.3in) | Width and depth combinations are limited by the overall 730mm (28.7in) | |
| Edge Seal Width | 5-10mm (0.2-0.39in) | 5-10mm (0.2-0.39in) | |
| Film Thickness | 0.04-0.12mm (40-120mic.) | 0.04-0.12mm (40-120mic.) | |
| Reel Outer Dia | 400mm (15.8in) | 500mm (19.7in) | |
| Reel Inner Dia | 75mm (2.9in) | 75mm (2.9in) | |
| Voltage | 220V/50Hz, 1phase or per customer specification | ||
| Power Consumption | 3KW | 4KW | |
| Compressed Air Requirement | 0.6 MPa 0.36 M3/min | 0.6 MPa 0.36 M3/min | |
| Footprint | W1300 x D1650 X H1650 mm; (W4'4'' x D5'55'' x H5'5'') | W1300 x D1850 x H2300 mm; (W4'4'' x D6'1'' x H7'7'') | |
| Machine Weight | 1000kgs | 1200kgs | |
