It is suitable for packing powder product such as milk powder, wheat flour, coffee powder, tea powder, bean powder.

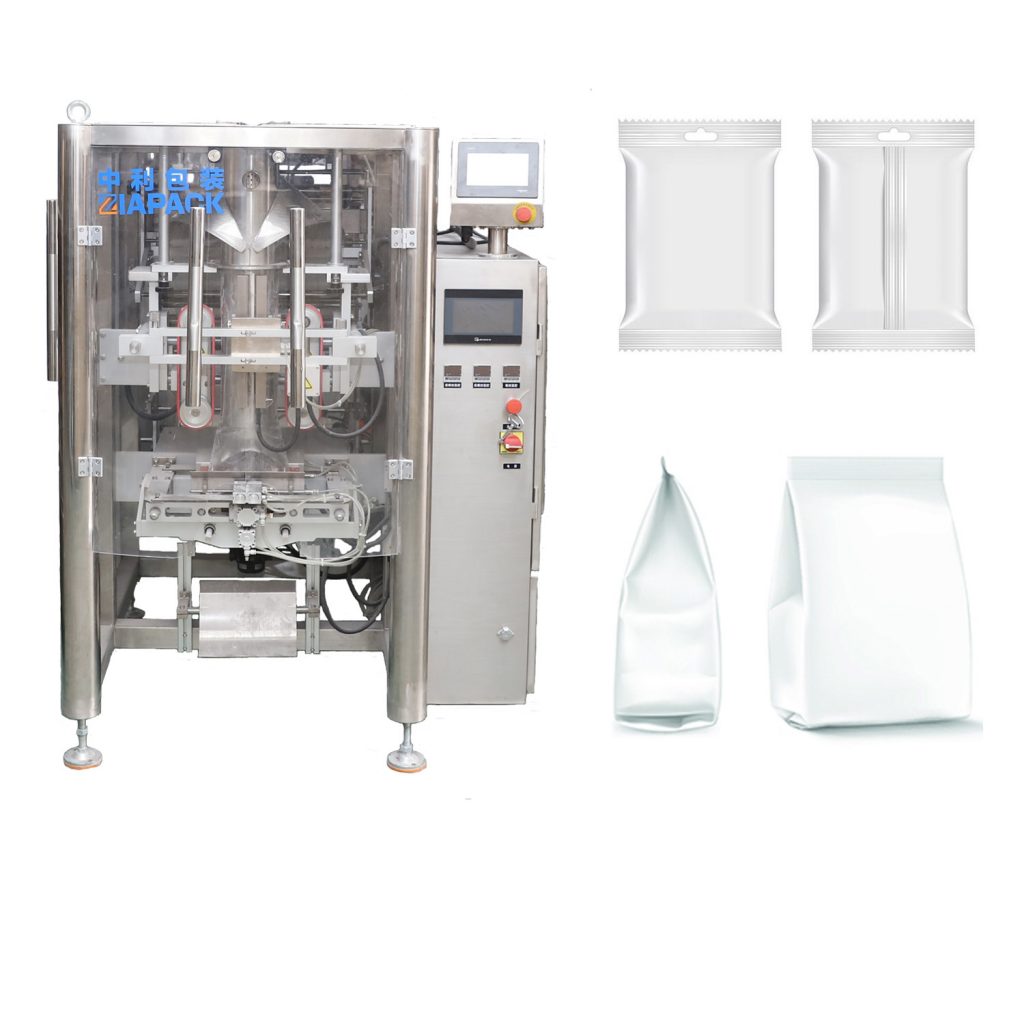

Vertical Form Fill Seal With Auger Filler Packing System for powder products, such as milk, flour, spices, pharmacy, ground coffee, cocoa powder etc.
Complex film or PE,such as BOPP/CPP/VMCPP,BOPP/PE,PE,PET/PE,Al.Foil etc.
1.This machine can automatically complete material lifting--auger filler measuring--coding--bag making--filling--sealing--counting--conveying finished products--sorting finished products.
2.PLC servo and pneumatic control system, super touch screen forms the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.
3.Touch screen can store a variety of different product packaging process parameters, when replacement product, it can be used at any time without having to reset.
4.Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate.
5. Can make hole punching device after customer’s request.
6. This machine has stainless steel type and carbon steel type for choice.
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
|Thickness of film roll||0.04-0.09mm|
|Making bag size||L:60-300mm,W:80-250mm|
|Pulling film type||Double belt pull film|
|Seal type||Pillow seal,Gusset bag,Block bottom bag|
|Main machine net weight||450kg|
|Main machine dimension||L1320*W920*H1390mm|
