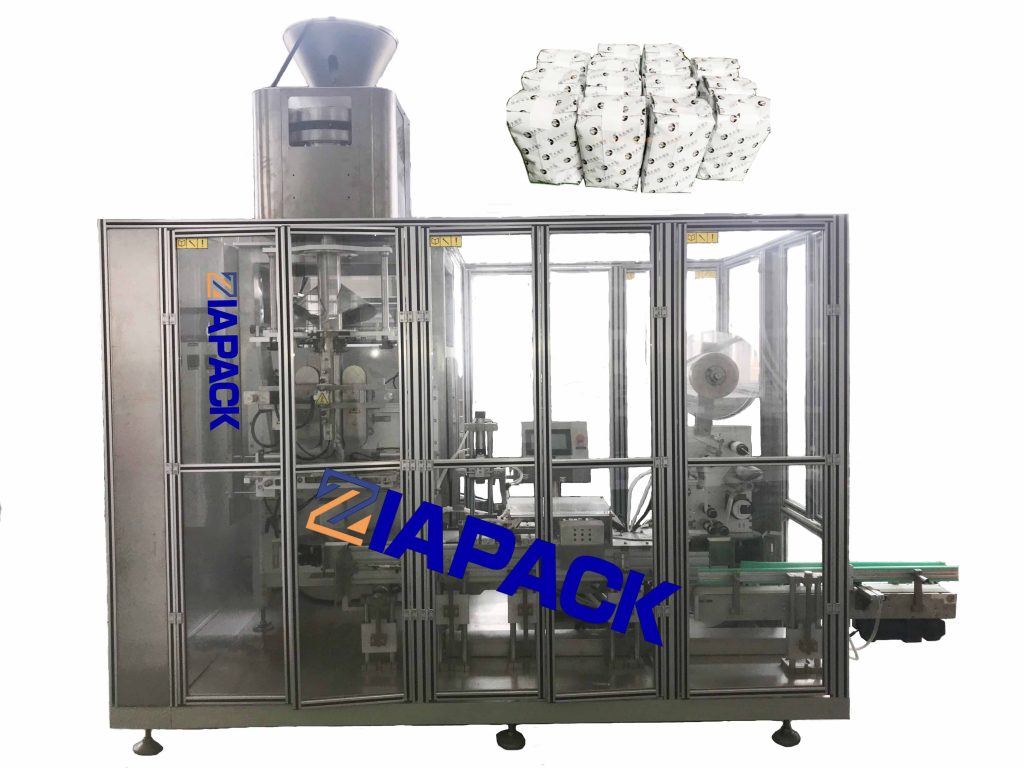

Usage
This machine is mainly used for packing granular products: such as sugar, salt, coffee beans, rice, peanuts, sunflowerseeds, grains, nuts, chocolate beans, oatmeal, washing powder, desiccants, etc.
Function and features
1.Workflow: material lifting -cup volumetric fller measuring coding --bag making-- filling --gas injection/ exhaust(optional) --sealing --counting--conveying finished products.
2.Adopts PLC servo and pneumatic control system, touch screen display, high reliability and intellectualized degree.and equipped with safety protection.
3.Touch screen can store a variety of diferent product packaging process parameters, when replacing product, it canbe used at any time without resetting.
4 Equipped with fauit display system, could be clear at a glance when the fault occurs, in order to be ruled out prompty.
5.This machine body is carbon steel (optional: 304 sanless steel).
Working pr
Technical parameter
| Packing speed | 10-30 bags/min |
| packing volume | 1500ml |
| Making bag size | L:60-300mm,W:80-200mm |
| Film width | ≤420mm |
| Thickness of film roll | 0.04-0.09mm |
| Pulling film type | double belt pull film |
| Air consumption | 0.8Mpa,0.5m³/min |
| Packing accuracy | ≤±1%(depends on product) |
| Main machine power | 3.5kw |
| Power supply | 1Ph.220V,50/60Hz |
| Seal type | Pillow seal,Gusset bag,Block bottom bag |
| Main machine net weight | 450kg |
| Main machine dimension | L1320*W920*H1390mm |
