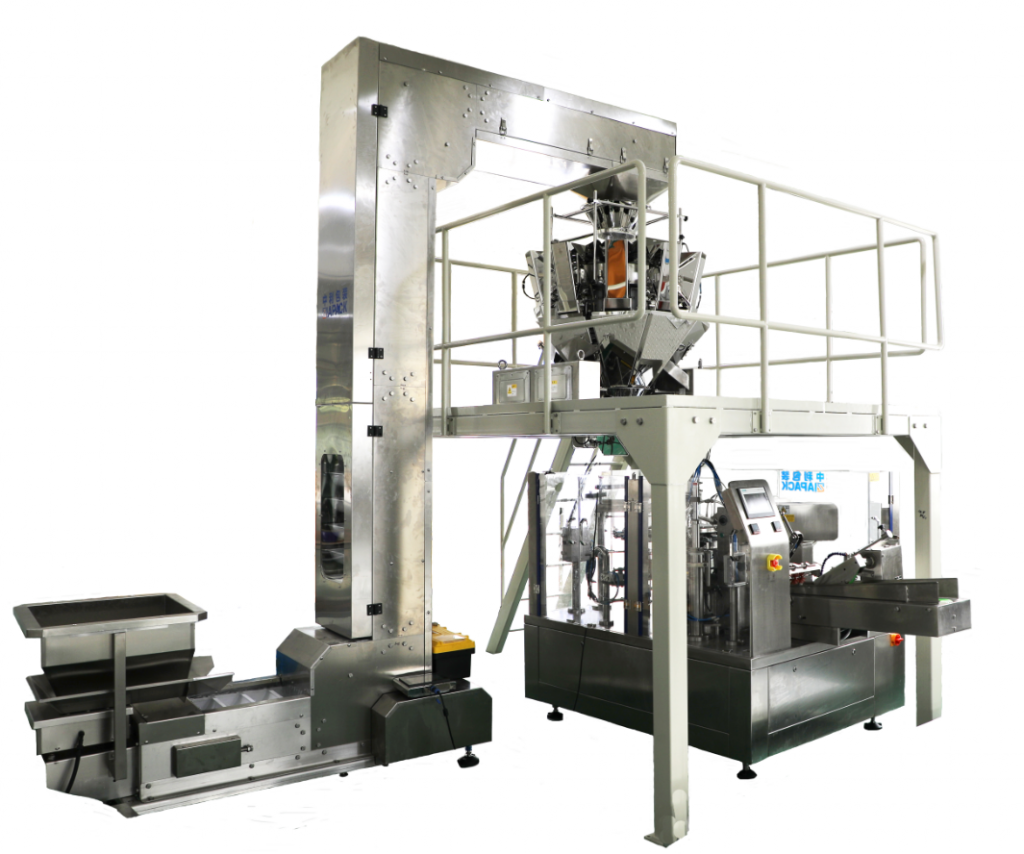

Granule packaging machine for snacks food
Suits to pack candy, tea, nuts, sugar, dates, biscuit, frozen food, rice, cookies, coffee beans, cereals, dried fruit, chocolate, expanded food, microwave popcorn, grain, snack food, vegetable, salad, all kinds of nuts and pet food etc.
Kinds of Premade Pouches
Stand up pouches, doypack with zipper, 3 side
seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch etc
Main Features
1.It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Horizontal Infeed conveyor suits for bags with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Yaskawa / Japan) controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
7. Automatic lubrication system: PLC control the lubrication time,automatically lubricate the machine parts instead of by manual.
8. It includes ribbon type date code: 3 lines * 17 characters.
9. Guarding: Glass Door Alarm / Air Pressure Abnormal
10. Internal grooved cam design: The technology with high precision, suits for max. packing
speed: 50 cycles/min with stable running.
11. Use free oil vacuum pump, avoid polluting the environment in the production.
Technical parameters
| Equipment model | ZL8-200,ZL8-230 ,ZL8-300 |
| Equipment material | 304 stainless steel |
| Pneumatic component | SMC,AirTAC |
| Vacuum component | Vacuum generator (SMC) |
| Drive mode | Frequency conversion motor drive |
| Measuring type | Multi-head computer weigher |
| Operation interface | Touch screen(double language:Chinese and English) |
| Bag materials | Heat sealable film as PA/PE,PET/PE,AL film etc. |
| Bag size | W:70~200mm L:100~300mm (date coding requires≥140mm length) |
| Filling range | 5~1500g |
| Packing speed | 20~55bags/min (depended on the product and filling weight) |
| Package accuracy | Error≤±1% |
| Driving power source | 380V Three-phase Five-line 50HZ |
| Control power source | DC24V |
| Compress air requirement | ≥0.45m³/min (compress air is provided by user) |
