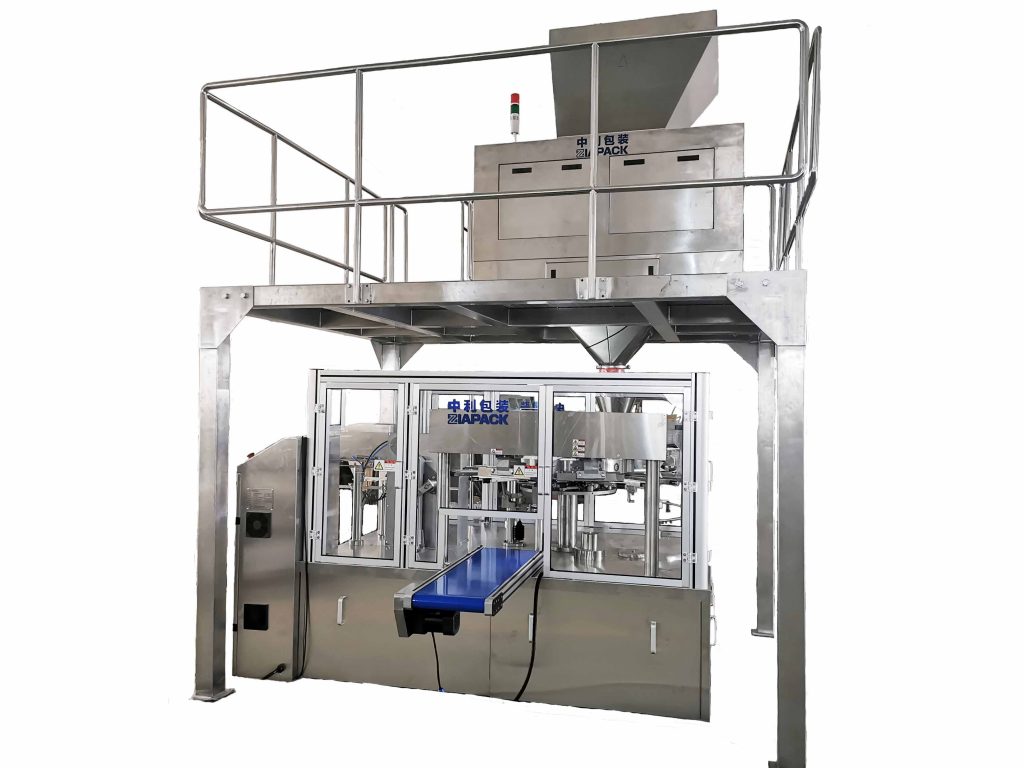

It is applicable for the big type pre-made bag filling and sealing. It can pack the four-side sealing bag, doy bag, M-type bag, zipper bag, bag with pallet, etc...
Applicable to the production of melon seeds, peanuts, roasted seeds and nuts, seeds, desiccant, sugar, monosodium glutamate and other granular materials, chips, nuts, bread and other leisure food, milk powder, coffee powder...ect.
The 10-station machine structure and uinque design, which is appliable for the big bag packing and a widely packing area;
- Adopts the exporting PLC and touch screen, Humanity design and easy to operate;
- Equipped with automatic trouble tracking, feedback and alarming system, it performs real-time display of the running condition.
- Unique mechanical detecting device for empty bag tracking is available to improve the sealing dependability;
- Main driving system is applied with advanced frequency conversion with stepless speed regulation. Each cycle orientation is controlled by precise cam dividing mechanism to finish the running of complete machine.
- The machine design conforms to National GMP standard, and the electric safety protection system has passed CE norm.
|Filling System||Electronic weighing system, Volumetric , Auger filler, liquid pump|
|Products||Nuts, Sweets, Spices, Chips, cookies, sweets, detergents, chemical products, etc ...|
|Weight Range||20-500 gr|
|Packing shape||3 or 4 side sealed, Doypack (With or without zipper)|
|Packing Speed||20-40 p/p/m|
|Packing Material||OPP, CPP, PET, AL, MetOPP and other all kind of laminated film|
|Min. Width and length of the Bag||85*140 mm|
|Max. Width and length of the Bag||200*280 mm|
|Dimensions de la machine||290*150*150 cm|
|weight of the Machine||1050 kg|
|Mechanical control system||mechanical cam|
|Voltage||380 Volt AC / 7 Kwh|
|Air||6 bar / 300 Lt/dk.|
