Technical characteristics:
1. English and Chinese screen display,it is simple to operate.
2. The function of PLC computer system is more stable, and it's more easy to adjust any parameters.
3. It can stock ten datas, and it's simple to change the parameters.
4. Sever motor drawing film, which is good to accurate location.
5. Independent temperature control system, the precision is accurate to ±1°C.
6. Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type, punching etc.
8. Bag-making, sealing, packing, printing date in one operation.
9. Quiet work circumstance, low noise.
Working Processes :
Feeding--Conveying--Weighting--Forming ( Filling--Sealing ) --Finish Products Conveying
Application&bag type

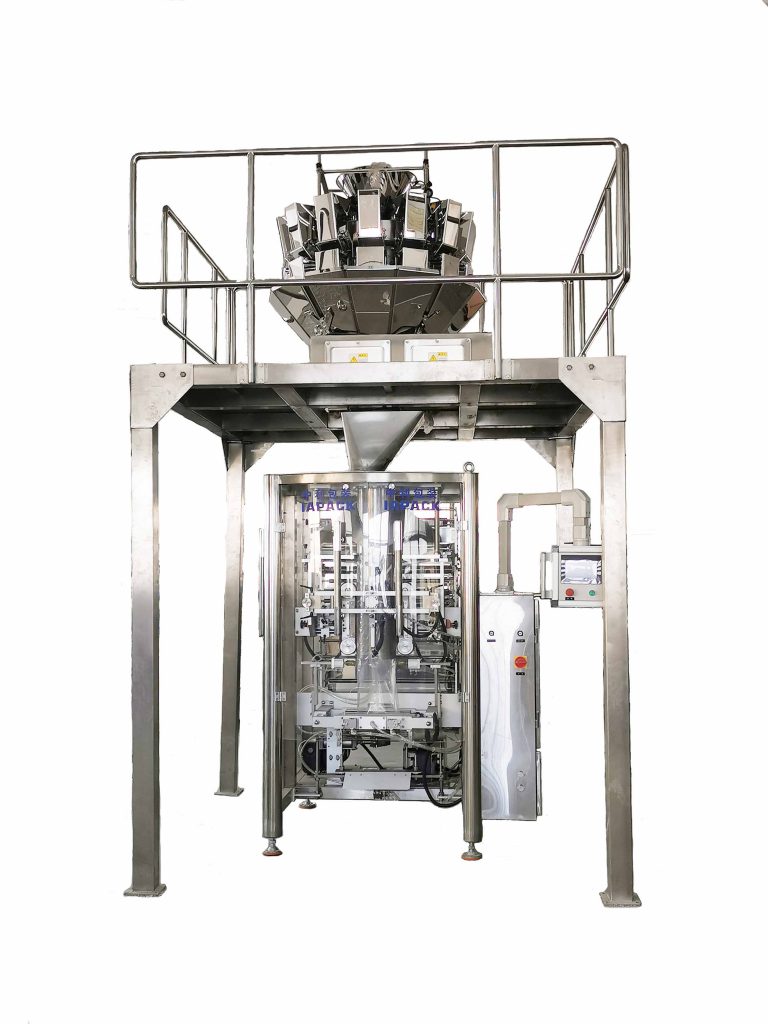

This automatic granule filling packing machine can be equipped with different weight and filling system for various granule, packaging such as peanuts, candies, cookies, potato chips, snacks, candy, pistachio, rice, sugar, beans, lentil, dried fruit, pet food,small hardware ect.
Applicable Pouches: Pillow / back sealing /flat pouch, 3/4 side sealing pouch, stick / triangle pouch, gusseted/quatro pouch, doypack.
Machine Specification:
| Packing material | OPP/CPP,OPP/CE,PET/PE (etc complex film) |
| Bag-making size | 200mm(L) |
| Packing speed | 5-60(bags/min) |
| Max width of film roll | 320mm |
| Measuring range | 150-800ml |
| Air consumption | 0.65mpa |
| Gas consumption: | 0.6m3/min |
| Voltage | 220V/50Hz |
| Power | 2.5KW |
| Product size | 1067(L) X1026(W) X1288(H)mm |
| Product weight | 300Kg |
