Introduction :

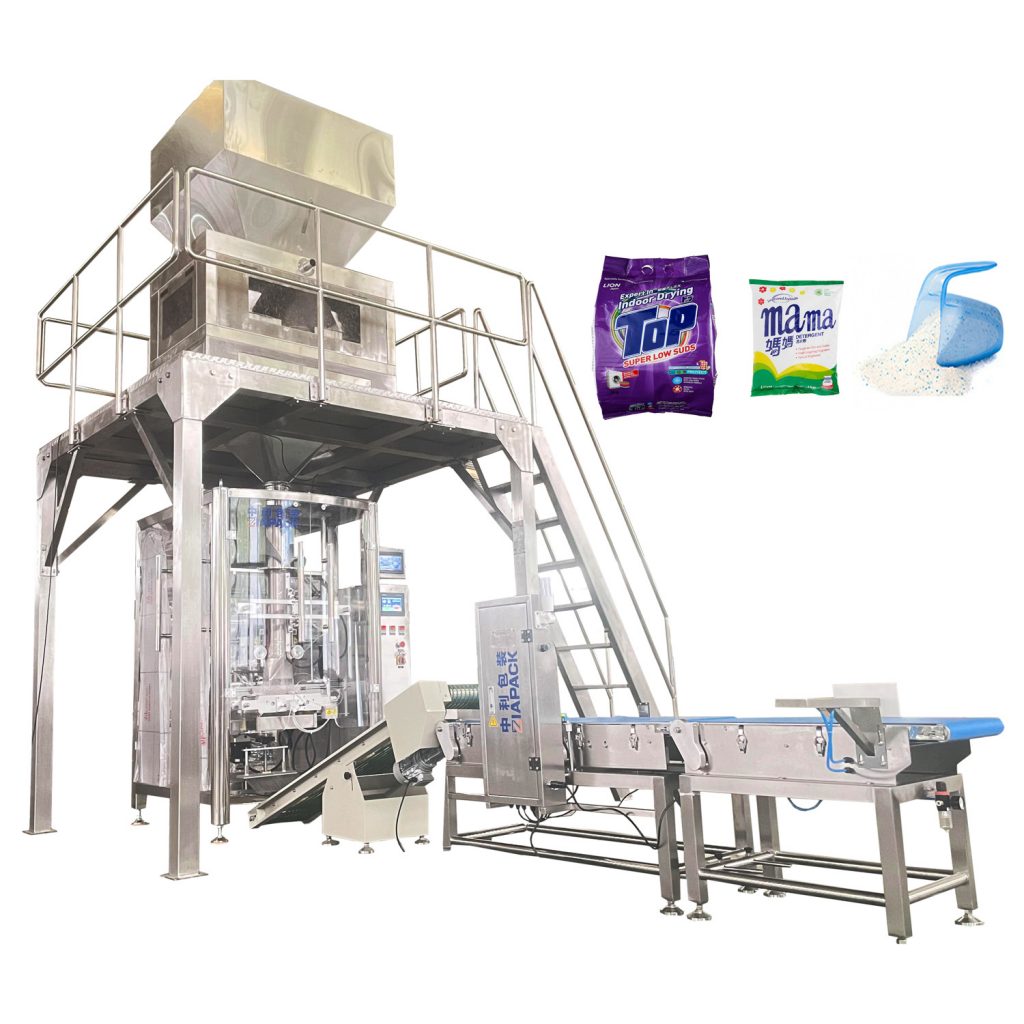

This machine unit is including one set ZL720 vertical bag forming filling sealing machine and one set ZLC-5000 Four bucket weighing machine ,One set DT3 vertical elevator and output conveyor machine .The whole machine unit can reach automatic bag making ,Product weighing ,product filling sealing and date coding .Widely using for packing slat ,detergent powder, rice ,bean and other granular product .
Applications:
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Features
- English and Chinese screen display, operation is simple
- PLC computer system, function is more stable, adjustment any parameters not need stop machine
- It can stock ten dispose, simple to change variety
- Sever motor drawing film, position accurately
- Temperature independent control system, precision get to±1°C
- Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material
- Packing type diversification, pillow sealing, standing type, punching etc
- Bag–making, sealing, packing, print date in one operation
- Work circumstance quiet, low noise
Additional Info
- Bag Styles:Pillow Bag, Gusseted Bag
- Bag Width:80 to 250mm (3.1 to 9.8")
- Bag Length:80 to 370mm (3.2 to 14.6")
- Product Characteristic:Granules, Powders, Liquids, Pastes
- Dosing System Compatible:Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler
- Running Motion:Intermittent
- Working Efficiency:5-60 bags/min
- Control By:PLC with HMI Touch Screen
- Date Coding Can Be:Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
- Options Available:Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
- Power & Voltage:7 KW
- Compress Air:0 MPa 0.4 M3/min
- Dimensions:1650mm*1170mm*1700mm (65.0*46.1*67.0")
- Machine Weight:800 KGS
Our Services
1. We will send you English user manual of the machine after you get our machine
2. There will be video show you how to operate the machine
3. We can send technician abroad to help you install and adjust the large machine if needed
4. Your contact will be replied within 24 hours if there is any question
5. Warranty: 1 year (we will replace the main part for you freely within 1 year, such as motor)
Please feel free to contact with us for more details now!
