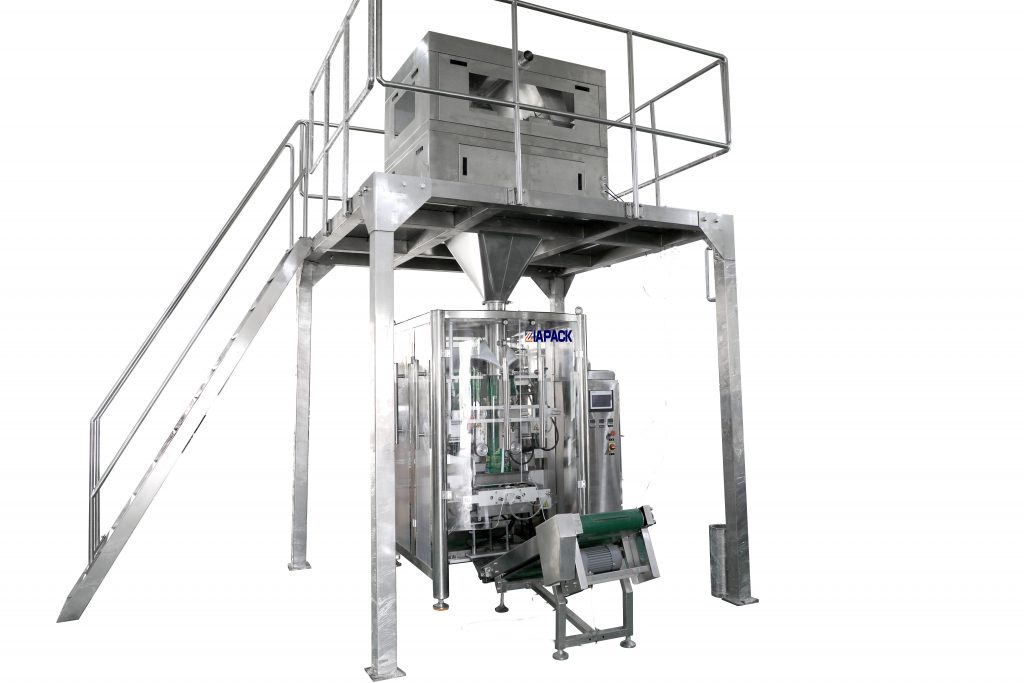

This machine unit is including one set ZL720 vertical bag forming filling sealing machine and one set ZLS-6 Six bucket weighing machine ,One set DT3 vertical elevator and output conveyor machine .The whole machine unit can reach automatic bag making ,Product weighing ,product filling sealing and date coding .Widely use for packing slat ,detergent powder, rice ,bean and other granular product .
Weighing Range: 1000-5000g
Packaging Speed:20-40 bags/min
Bag size: (80-460)*(100-350)mm(L*W)
Compressed air requirement: 0.6Mpa 0.65m³/min
Reel outer diameter: 400mm
Core inner diameter: 75mm
Machine weight: 800kg
Power source: 5.5kW 380V±10% 50Hz
Main Features and Characteristics:
A wide range of pouches: Pillow and Gusset pouches(optional).
High speed: 20-50 bags/min
Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
Easy to adjust: only about 10 minutes to change different pouches.
Frequency control: speed can be adjusted by frequency conversion within the range.
High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.
Safety and Hygiene:
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
