Automatic seconday bagging machine (small pouches into big bag )

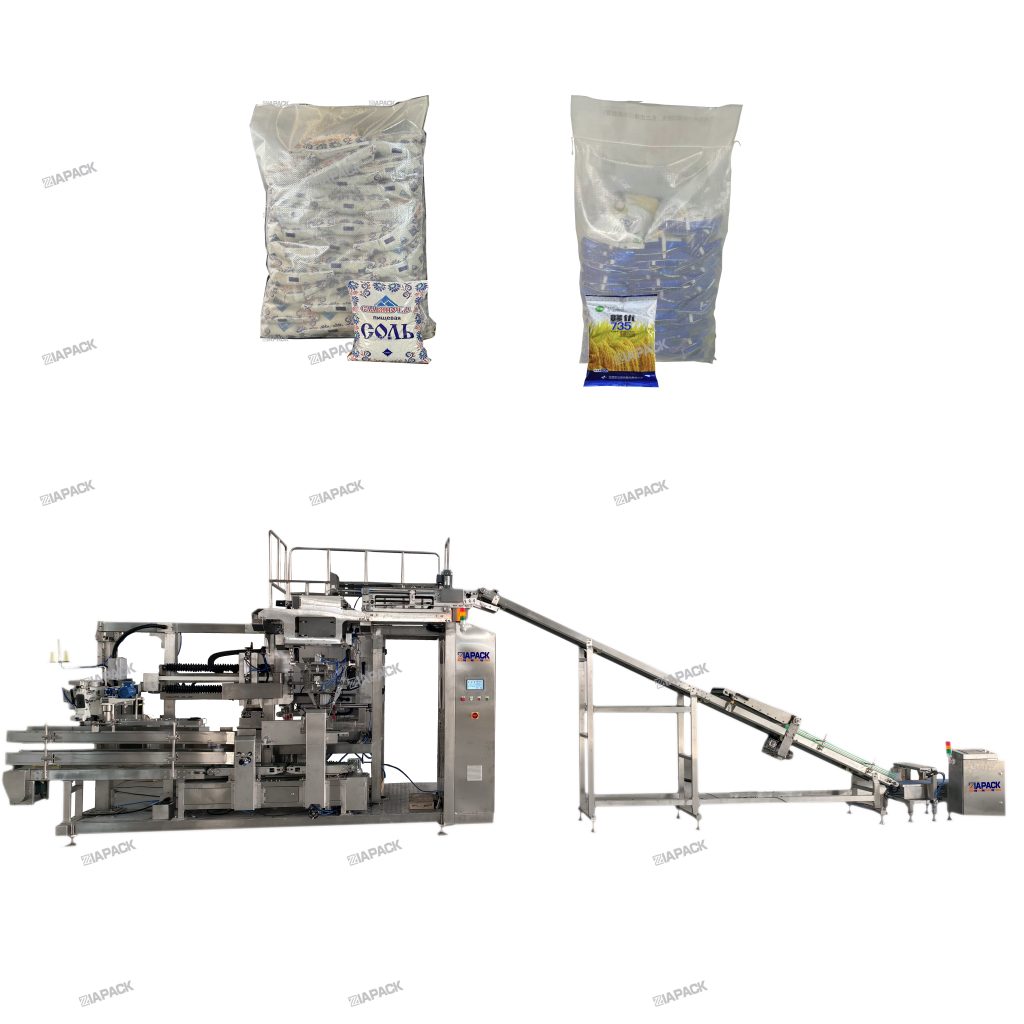

Automatic BIB secondary bagging machine for small lime pouches

Introduction :

The secondary packaging unit is a fully automatic packaging process that automatically puts the products output by the primary vertical packaging machine into woven bags and China famous brand s and outputs them according to requirements (arrangement form, quantity, etc.). This unit mainly completes the automatic packaging process of neatly putting the packaged bagged products into bags and China famous brand ing them out of bags as required, and realizes automatic filling of small bags into bags, thereby saving manpower, material resources and financial resources, reducing production costs and improving production efficiency. This unit is widely used in powder and granular industries such as washing powder, salt, sugar, seed milk powder, etc., and is the preferred equipment for customers.

Advantages :

1 This packing unit can realize bag feeding bag open counting filling moving output China famous brand ing fully automatically

2 The unit is operated through the touch screen operation specifications change maintenance are very convenient safe and reliable .

3 Can be arranged to achieve a variety of forms to meet different needs of customers

Packing form : Different packing form need different packing machine unit

Production process:

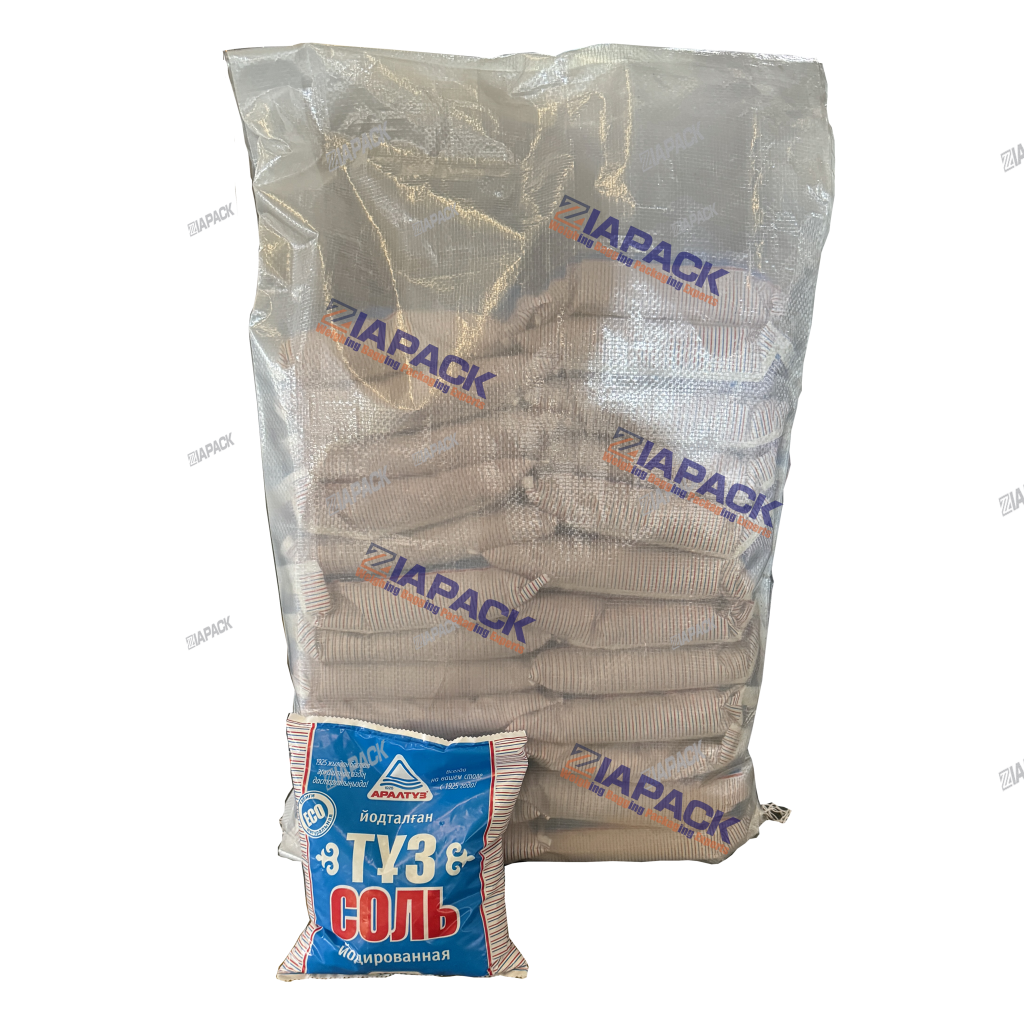

For secondary packaging (auto putting the small pouches into PP woven bag):

Horizontal conveyor belt for collecting the finished sachets → slope arrangement conveyor will make the sachets flat before counting → Acceleration belt conveyor will make the adjacent sachets leaving enough distance for counting → counting and arranging machine will arrange the small sachets as requirement →   the small sachets will load into the bagging machine →   bagging machine seal and cut the big bag → belt conveyor will take the big bag under the packaging machine.

Main technical parameters:
