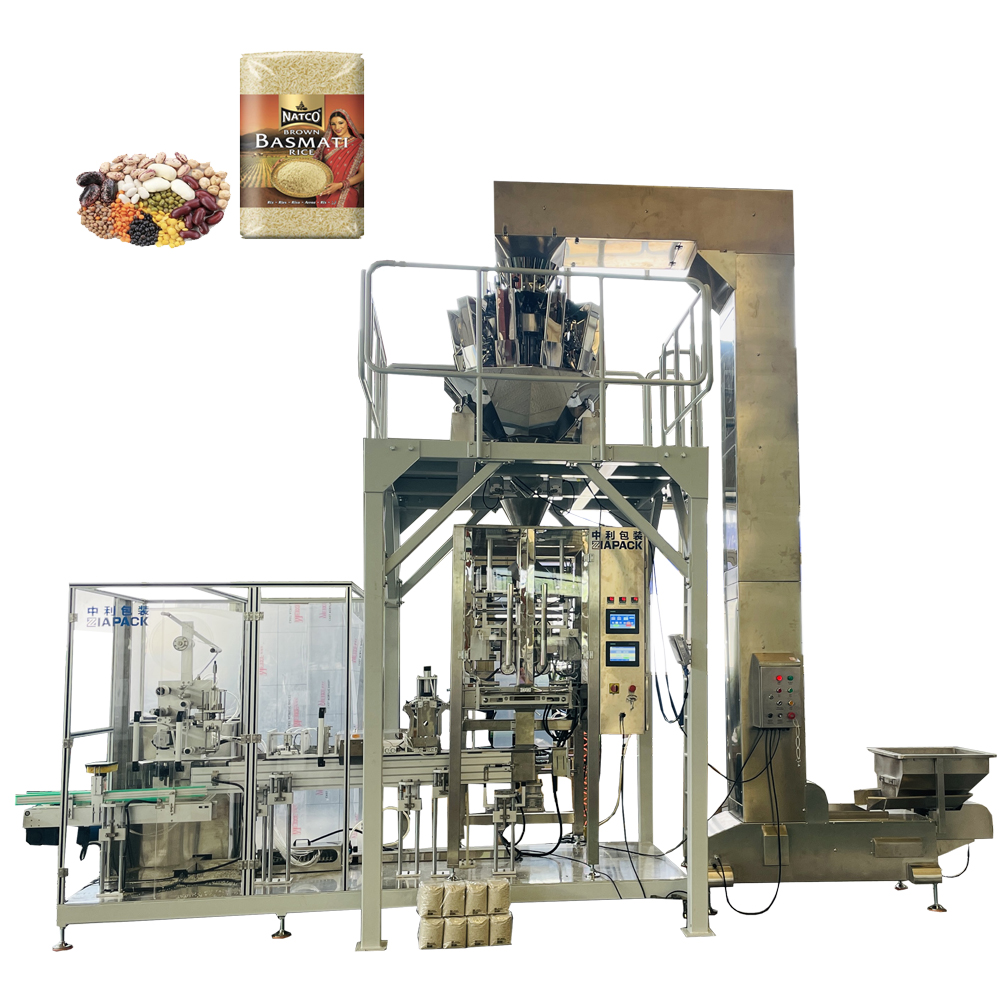

ZL520 automatic bag forming filling sealing and top labeling machine
Introduction :
This machine are special design for packing granule product into square bottom bag .It is widely use for packing wheat rice bean grain and similar product .This machine unit are including ZLB500 Volumetric cup dosing system ,one set ZL420 vertical bag forming filling machine .one set ZLYB1000 linear bag forming sealing and labeling machine and one set output conveyor .It can make the nice bag with square bottom and fold the bag mouth and labeling .So the finished bag have a nice shape ,pretty outlook .
Details information of the machine

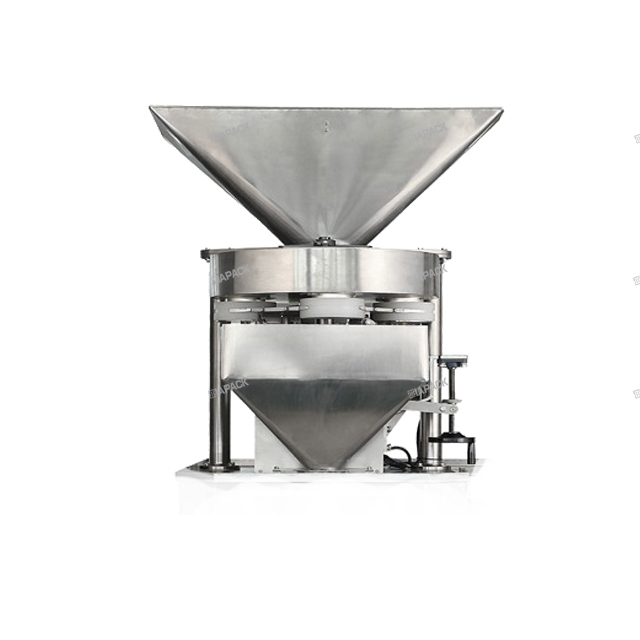

1,ZLB500 Volumetric cup dosing system with cover
The whole machine made by SUS304.Adopt China famous brand motor .Volume can be adjust from 75%-100% .Including the vibrate feeding device which special design for wet salt and mixed device.
Technical Parameters:
Speed: 40-60time/min
Power :220V 50HZ 0.75KW
2,ZL420 Vertical bag forming filling sealing packaging machine
The unit of machine is especially developed for small bag packaging ,This machine can independently complete the bag making, filling (air filling or exhausting as option), sealing (hole punching as option ) code printing, and bag counting etc. adopt film automatic correction device .The machine frame and material contact part made by SUS304 .PLC and touch screen adopt by Siemens brand .Adopt Panasonic servo motor for horizontal sealing which is fast and stable .And Pneumatic parts adopt Air Tac brand .Main Electrical components adopt Omron and Schneider brand Which is easy to operation
Technical Parameters
Weighing Range: 500-1000gram
Packaging Speed:18-20 bags/min for 1kg 20-25bags/min for 500gram
Bag size: (80-280)*(60-180)mm(L*W)
Compressed air requirement: 0.6Mpa 0.65m³/min
Reel outer diameter: 400mm
Core inner diameter: 75mm
3,ZLYB1000 linear model bag forming sealing and labeling machine

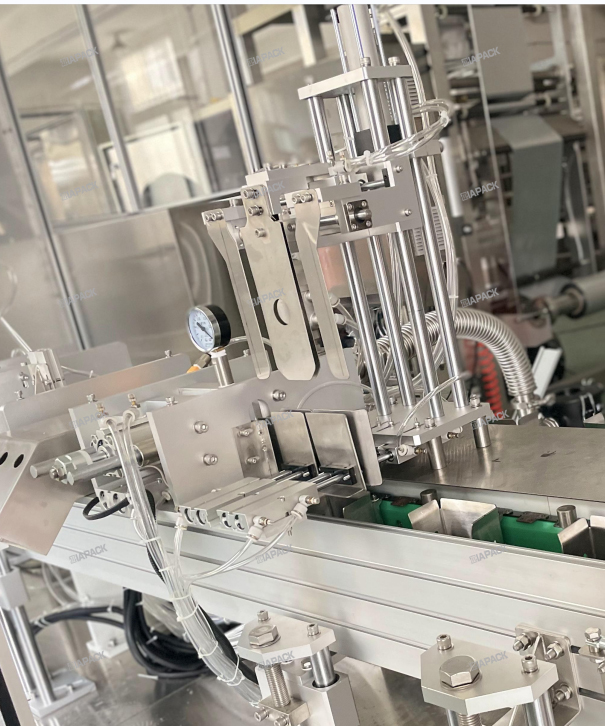

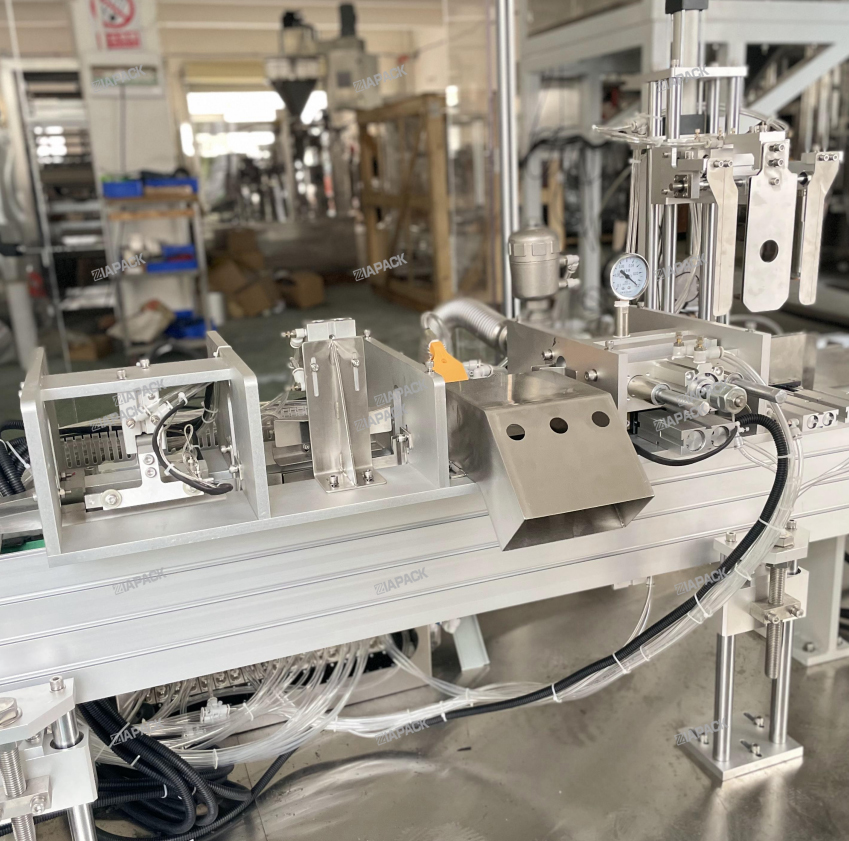

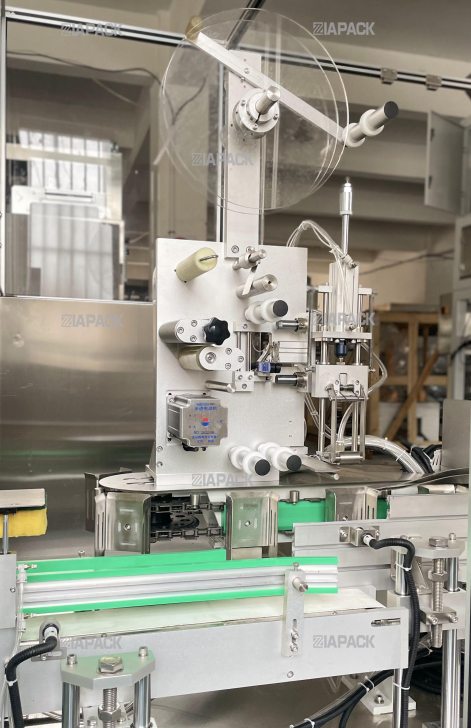

This machine is special design for make the gusset bag with top labeling .After the full bag with product drop on this machine .This machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.This machine is working with automatic packaging machine to reach the finished bag top labeling .This machine can automatic reach the function of the label separated ,Label sending .Label detector and label pressing .
