Introduction :

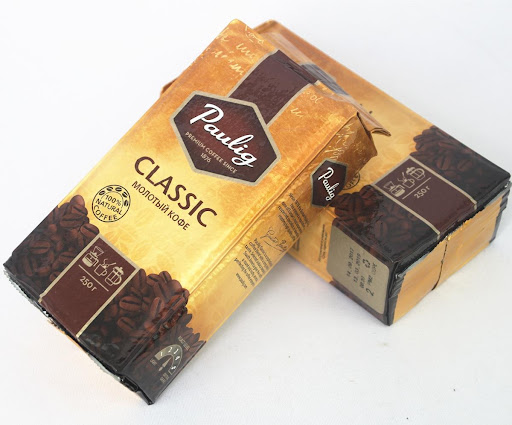

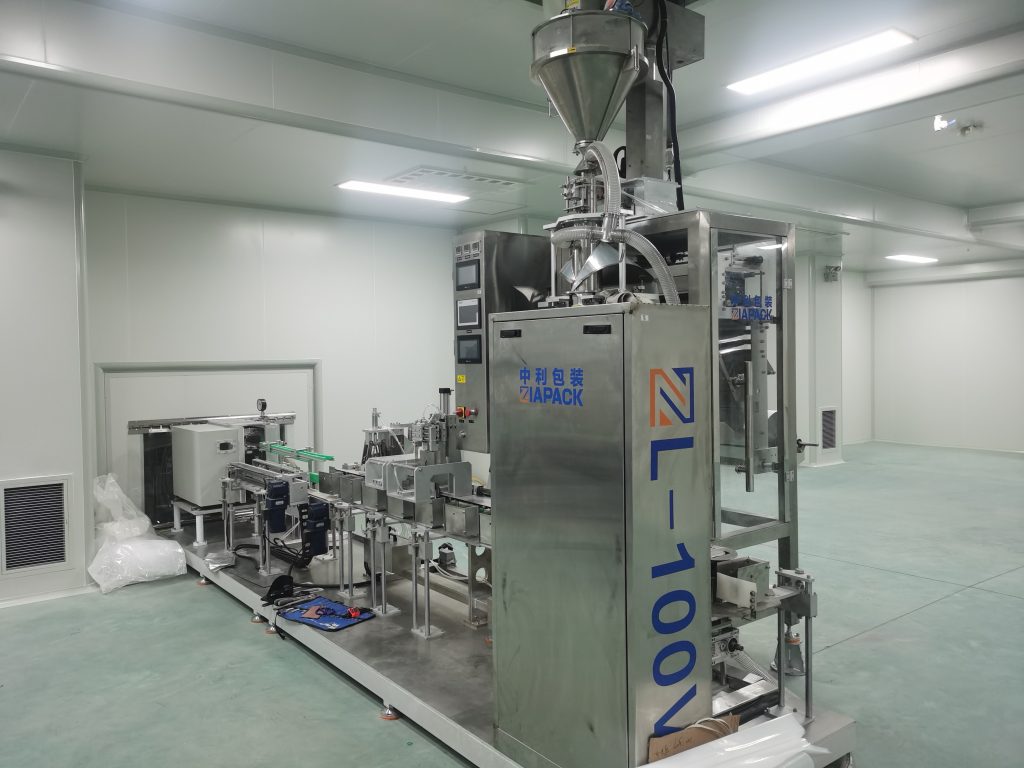

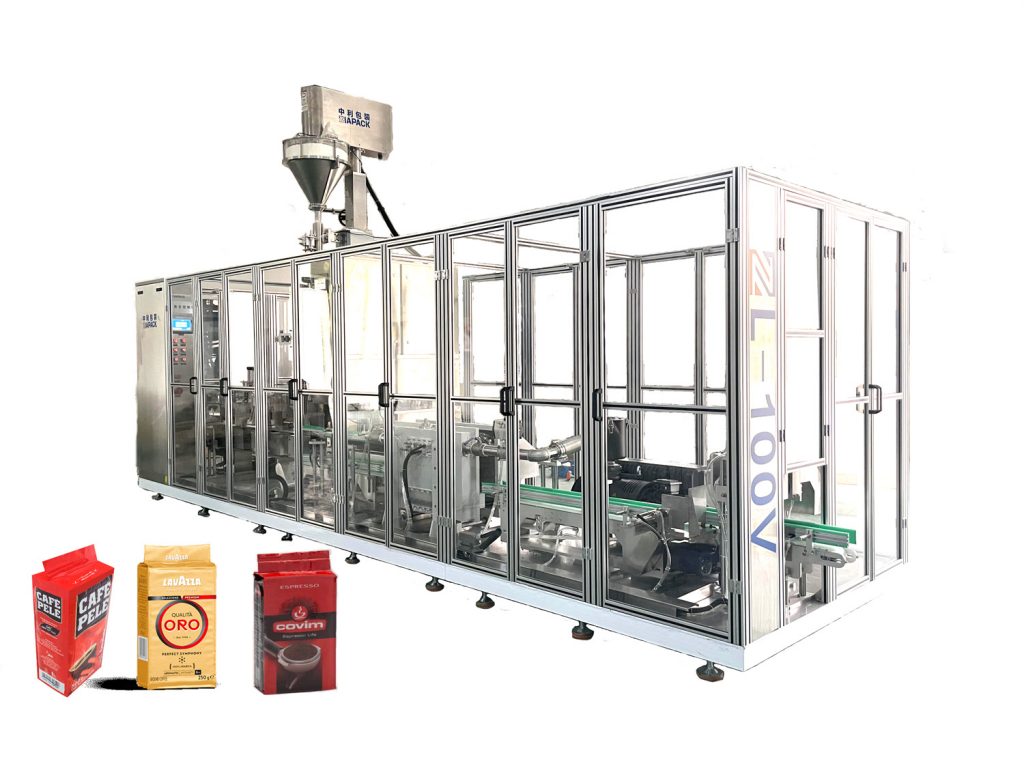

This machine including one set ZL520 vertical bag making packing and sealing machine .one set ZL2000 double bucket weighing machine ,One set ZL-100V vacuum packing machine ,and one set output conveyor .This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high can be reach 15bag/min .The finished product is very nice and have a long shelf life.
Technical Parameters:
Packing speed: 6~35 bags/min
Measuring range: 100g~2kg

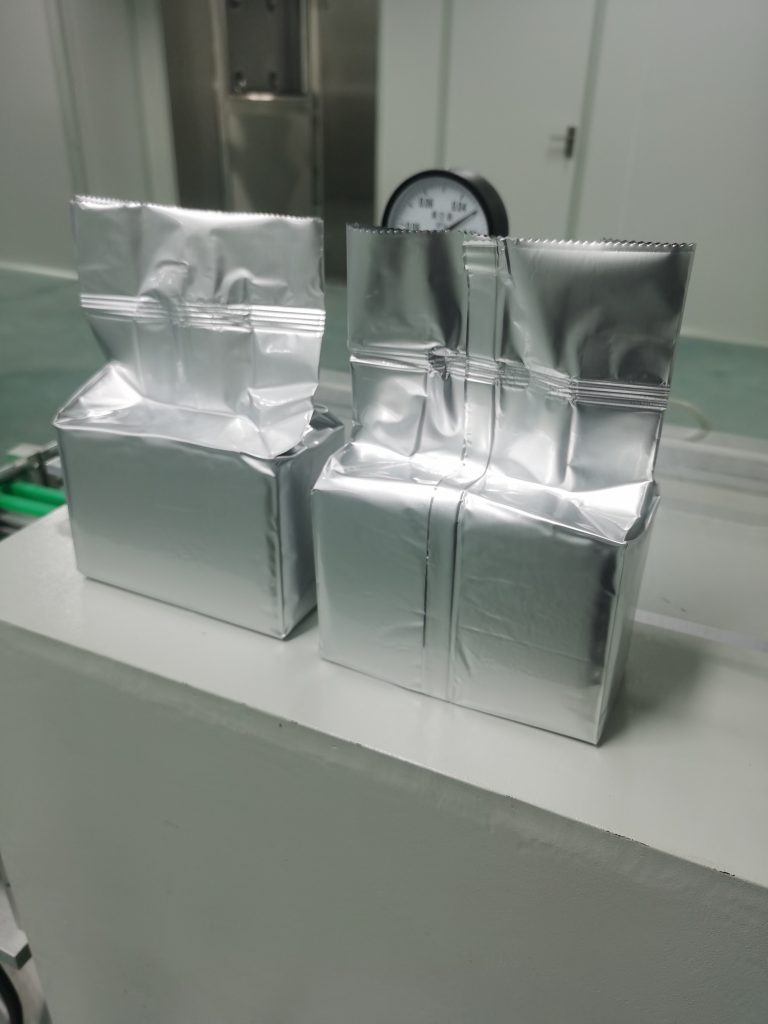

Bag making form: brick type vacuum bag (hexahedron)
Compressed air: 0.8MPa 0.65m3/min
Machine weight: 1000kg
Power supply: 5.5Kw 380V±10% 50Hz
work process
VFFS packing machine forming the bag by roller film -Weighing machine weighing and filling product .- Bag filling with product fall into bag carry module -Bag top forming and cleaning -Bag gusseted folding --Bag pre-sealing and vibrating --Bag send into vacuum chamber ---Vacuuming and final sealing --Finished bag output and triming the bag top ---Finished bag output
