Introduction :

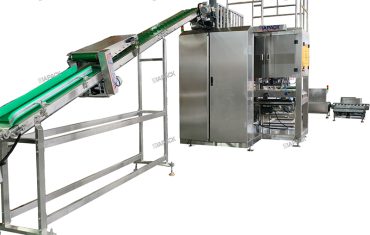

This machine are special design for packing powder product into pillow bottom bag .It is widely use for packing wheat flour and chemical powder .This machine unit are including one set ZL2000 auger filling machine one set ZL520 vertical bag forming filling machine .one set Open mouth bag conveying machine and control system .The whole machine control by PLC and operate by color touch screen .
Bag carrying conveyor
Work progress:
1,Automatic weighing and discharge the material
2,Automatic making the bag and filling the material
3,Automatic discharge the bag on conveying machine with module
4,Sending the bag to manual vacuuming and sealing
Details information of the machine
1,ZL520 Vertical bag forming filling sealing machine
The unit of machine is especially developed for small bag packaging ,This machine can independently complete the bag making, filling (air filling or exhausting as option), sealing (hole punching as option ) code printing, and bag counting etc. adopt film automatic correction device .The machine frame and material contact part made by SUS304 .PLC and touch screen adopt by Siemens brand .Adopt Panasonic servo motor for horizontal sealing which is fast and stable .And Pneumatic parts adopt Air Tac brand .Main Electrical components adopt Omron and Schneider brand Which is easy to operation
Technical Parameters
Weighing Range: 500-1000gram
Packaging Speed:20-50 bags/min
Bag size: (80-350)*(60-260)mm(L*W)
Compressed air requirement: 0.6Mpa 0.65m³/min
Reel outer diameter: 400mm
Core inner diameter: 75mm
Machine weight: 800kg
Power source: 5.5kW 380V±10% 50Hz
Main Features and Characteristics:
A wide range of pouches: Pillow and Gusset pouches(option).
High speed: More than20-60 bags/min
Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
Easy to adjust: only about 10 minutes to change different pouches.
Frequency control: speed can be adjusted by frequency conversion within the range.
High Automation:unmanned in weighing and packing process,machine alarm automatically when failure.
Safety and Hygiene:No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel
