Applications
This style of machine can complete the measuring, filling etc. Because the original design, it more suitable for packing the easy flow or poor liquidity of powder and granular materials, such as veterinary medicine, powder granular additives, sugar, cotton, sugar glucose, monosodium glutamate, solid beverage, solid medicine, carbon powder, talcum powder, pesticide, dye, flavor and fragrances etc.
Features
√ High precision digital weighing sensors;
√ PLC control system ,stable and reliable;
√ 5.7inch colorful touch screen;
√ Material contact parts (storage hopper, hopper, vibration plate, weighing hopper, etc.) are to realize fast disassembly, easy to clean;
√ Easy to clean and maintance.
Optional Device
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications
Type | ZL-420 |
Bag length | 50-300mm(L) |
Bag width | 50-200mm(W) |
Max width of roll film | 420mm |
Packing speed | 5-60bags/min |
Measuring range | 150-1200ml |
Air consumption | 0.65mpa |
Gas consumption | 0.3m³/min |
Power voltage | 220VAC/50Hz |
Power | 2.2KW |
Dimension | (L)1080mm*(W)1300mm*(H)1400mm |
Deadwight of machine | 600kg |

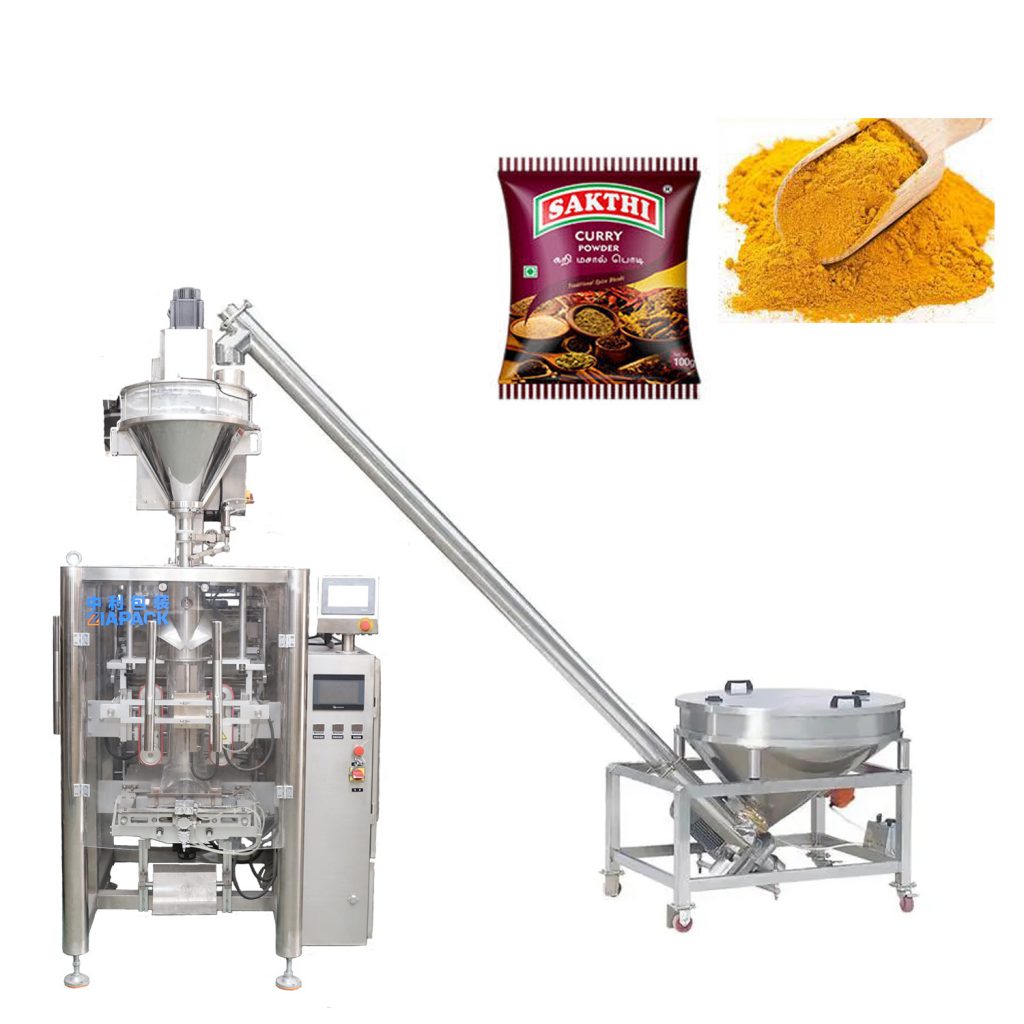

Auger Filler for powder, range 10-1000g, speed up to 80 discharges per min.
Application:
Auger Filler with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.
Features:
- SS 304 Frame, with hydraulic elevator, meets GMP request, also for some corrosive powder.
- Compact system, stable and durable.
- Low noise, maintenance free Servo motor driven, precious, fast, high torque, long life, speed adjustable.
- Air proof hopper, dust proof with easy nitric flushing. Discharge gate with dust collector.
Technical Specification:
Working Method: | Auger Screw |
Auger Diameter: | 22mm - 84mm (0.9" - 3.3") |
Packing Range: | 10-1000 gram Change Auger |
Working Speed: | 20 - 80 Discharge Per Min |
Accuracy: | ≤+/-0.3-1% |
Voltage: | 3 Phrase 380v or Single Phrase 220v |
Power: | 0.9Kw Servo Motor For Auger: 1000W, Mixing Motor:200W. |
Weight: | 130Kgs (286.6 lb.) |
Volume of Hopper: | 50 Liter |
Dimension: | Refer to Product Pictures |
