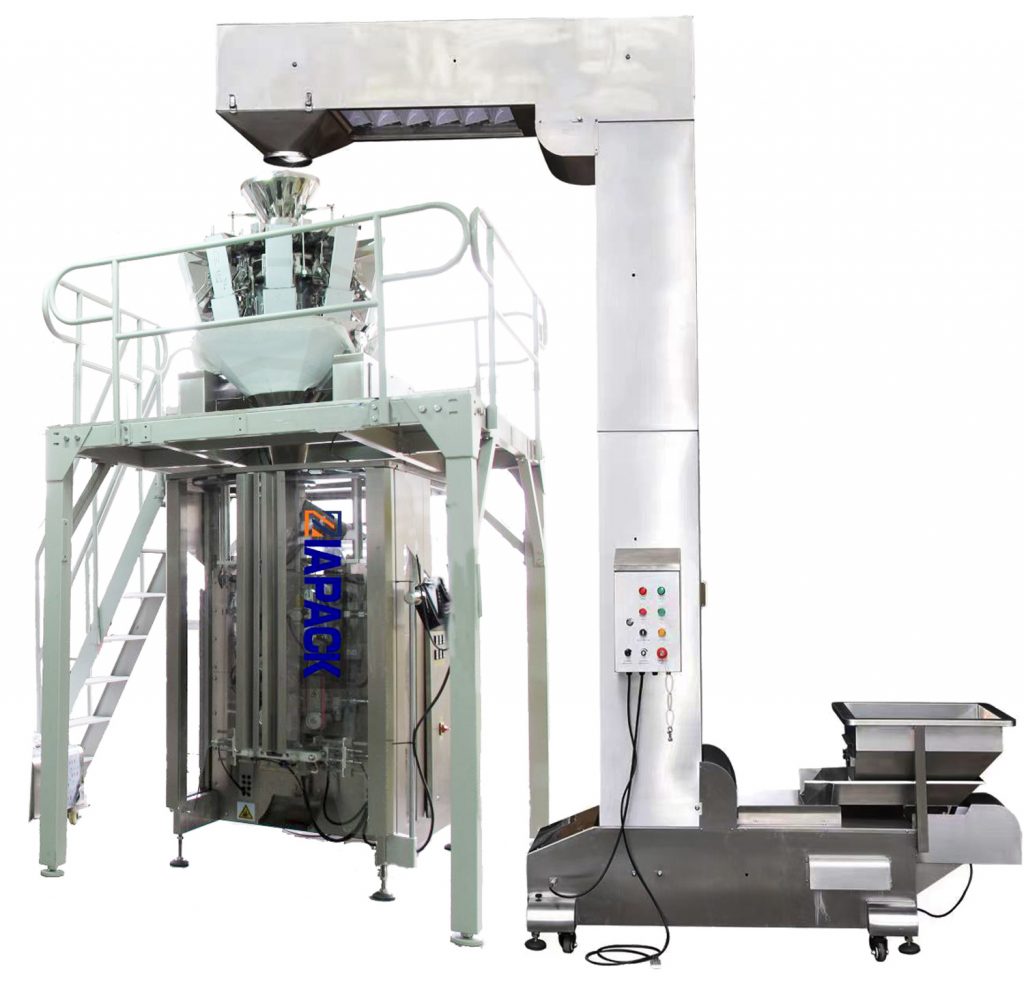

It's configured to produce four corner edge seal stand-up bags, quad seal bags, it’s also available to do pillow and gusset bag by option.
Suitable for automatic packaging grain,puffed food,dried fruit,beans,seeds,sugar,salt,spice,peanuts,rice,tea,snack,potato chips,dumpling,detergent powder,drying agent,etc.
- User friendly PLC controller & Touch screen interface
- Unique back-seal design are extremely flexible to run quad seal, pillow, gusset bag.
- Independent temperature zones
- Servo-driven film transport and cross sealing jaw
- Vacuum pump assists film transport
- Guarding style allows greater access & easy maintenance
- Fully enclosed stainless steel & aluminum construction
- Robust long-life construction
|Bag style||Quad Seal Bag, pillow and gusset bag|
|Bag length||Up to 340mm (13.4’’)||Up to 420mm (16.5'')|
|Bag width||80 to 200mm (3.1’’ to 7.9’’)||100 to 240mm (4’’ to 9.4'')|
|Bag Side depth||50 to 100mm (2’’ to 3.9'')||50 to 120mm (2’’ to 4.7'')|
|Edge Seal width||5 to 10mm (0.2’’ to 0.4'')|
|Film width||≤540mm (21.3'')||≤730mm (28.7'')|
|Voltage||AC220V/50Hz, 1phase or Per customer specification|
|Compressed Air Requirement||0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm)|
※Above parameters are able to be customized properly as requests.
Optional function devices
1. Hole punch device
2. Tear notch device
3. Bag- Linking control device
4. Air exhaust device
5. Nitrogen inflation device

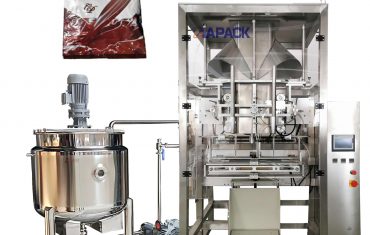

6. Liquid pump device for packing liquid material
Optinal spare parts
2.Finished product conveyor
1. How to choose the machine?
Before offering the option to you, you need to let us know:
a. What is your packing product?
b. What is the filling weight per bag?
c. What is the bag type and bag size? Could you provide any pics?
d. What is voltage and Hertz in your local?
2: Are you a factory or a trading company ?
We are a factory with more than 10 years experience, and especially R&D, manufacture and sell various packing euipments.
3: How to learn operation ?
Machine with manual, and we have relative videos on YOUTOBE or email you.
4:How about the payment ?
T/T, L/C, Western Union, Alibaba trade assurance service etc can accept.
5. How can we make sure about the machine quality?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
