Product description

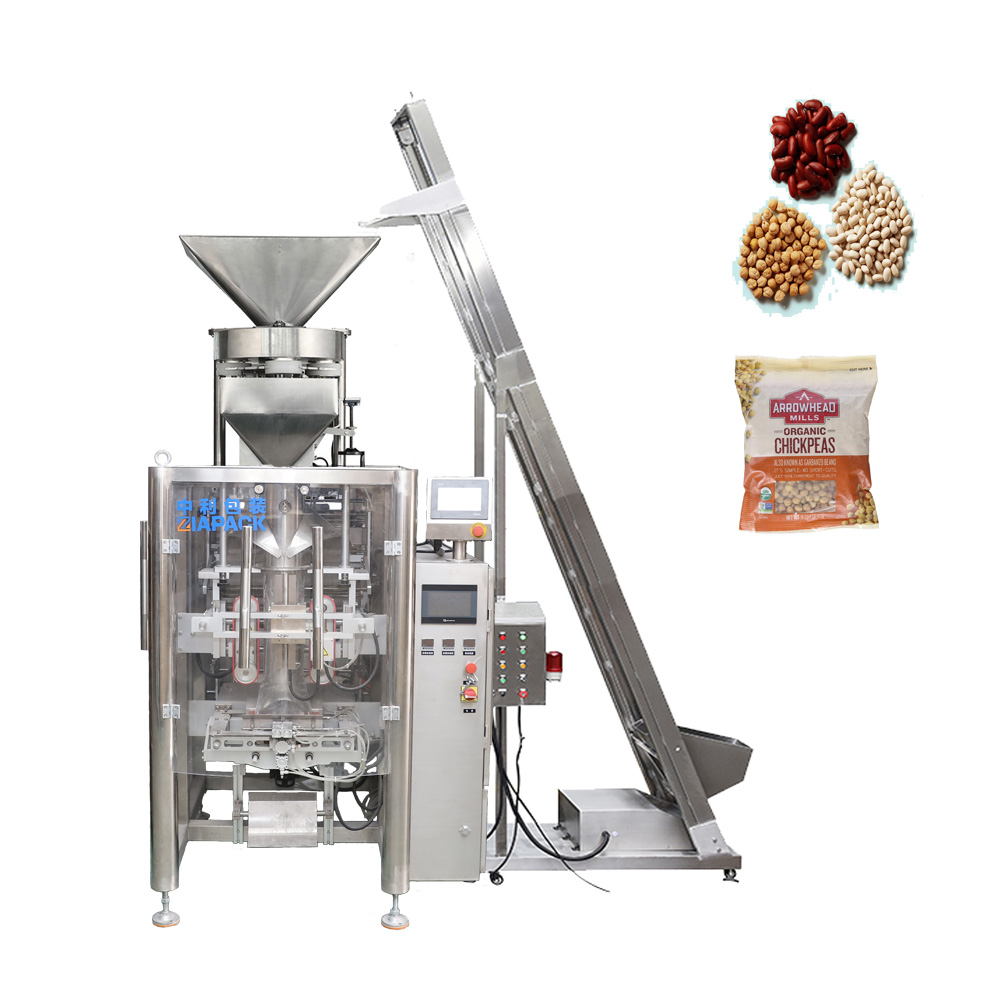

This unit machine is special design for packing vairous granule product like bean ,rice ,sugar ,salt ,grain and so on .Adopt the volumetric cup as dosing machine .Speed is fast and stable .The whole machine unit can reach the function of bag making ,product weighing ,filling ,bag sealing and output .With date coding and bag counting which improve the automation .This machine is very popular in Modern samll and middle factory .
Features
- High-speed capabilities up to 80 packs per min
- Adjustable capacity from 50-250ml; 250-500ml, 500-1000ml is optional
- Accuracy 0.2 to 2g
- Omron controls as standard
- User-friendly interface
- Film track by photo-electric eye & encoder
- Servo driven for film transport
- Stainless steel systems
- Small footprint, Compact, robust and long-life construction
- Customized to meet your production, package style and econoic requirements
Technical parameters
| Model | ZL420 |
| Measuring range | 100-500g |
| Measurement accuracy | ±1％ |
| Bag Type | Pillow bag, Gusseted bag/Flat bottom bag |
| Operation Mode | Intermittent |
| Speed | Up to 60 bags/min |
| Dimension | 1480x1020x2560mm（L x W x H） |
| Weight | 700KG |
Volumetric Cup Fillers
The Cup Filler Automatic Pouch Packing Machine is suitable for all kinds of granules, like washing powder, rice, seeds, sugar, fodder, sesame seeds, and others. Our granule VFFS Cup Filling machine accomplishes bagging, sealing, date printing, punching, and counting automatically and in the user-friendly manner.
| Machine Name | Volumetric Cup Fillers |
| Model | ZLB1000/2000 |
| Filling Capacity | 10-50, 100 - 250, to 500 - 1000 gm |
| Machine Speed | 30-60bag/min for 500gram salt |
| Total Power | 2.5 KW 220v Single Phase 50 / 60Hz |
| Air Compresser | 8 CFM With 6 bar Pressure |
| Weigh | 350 Kg {Approx} |
| Dimension | 1120mm X 1200mm X 1900mm (D x W x H) |
| Main Features | granule VFFS machine provides attractive bags for customers The vertical form fill seal machine accomplishes bagging, sealing, date printing, punching, and counting automatically The film drawing down system is controlled by a servo motor, offering automatic rectifying deviation The granule VFFS machine makes use of famous brand PLC and pneumatic system for vertical and horizontal sealing With low maintenance cost, the vertical packaging machine is easy to operate, and compatible with different internal or external measuring devices As to the way of bag making, the granule VFFS machine can make pillow type bags and standup Bags as per customer needs |
