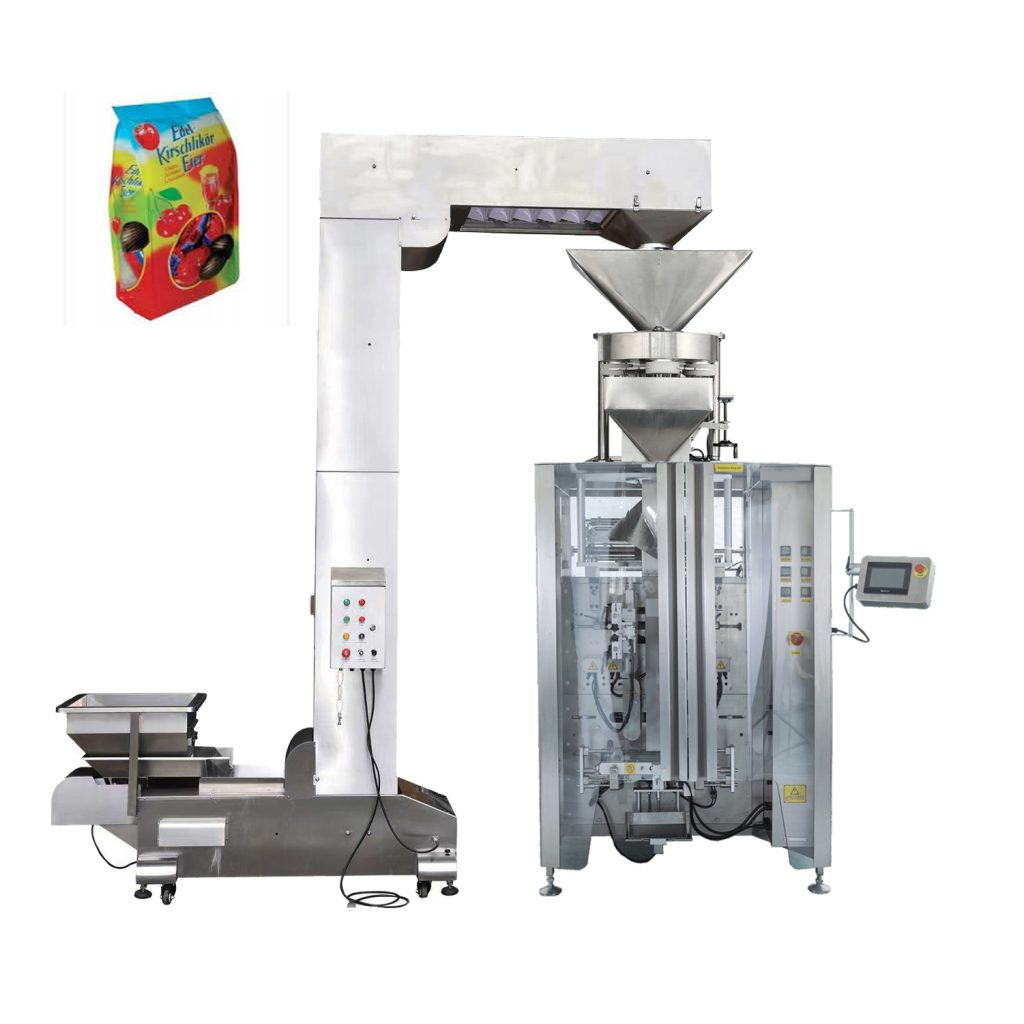

Product description

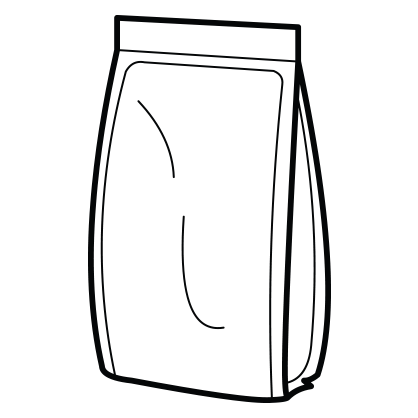

It's configured to produce four corner edge sealing quad seal bags, it’s also available to do pillow and gusset bag by option.
Features
- User friendly PLC controller & Touch screen interface
- Unique back-seal design are extremely flexible to run quad seal, pillow, gusset bag.
- Independent temperature zones
- Servo-driven film transport and cross sealing jaw
- Vacuum pump assists film transport
- Guarding style allows greater access & easy maintenance
- Fully enclosed stainless steel & aluminum construction
- Robust long-life construction
Technical Specifications
| Model | ZL520YA | ZL720YA | |
| Bag style | Quad Seal Bag, pillow and gusset bag | ||
| Bag length | Up to 340mm (13.4’’) | Up to 420mm (16.5'') | |
| Bag width | 80 to 240mm (3.1’’ to 7.9’’) | 100 to 330mm (4’’ to 9.4'') | |
| Bag Side depth | 50 to 100mm (2’’ to 3.9'') | 50 to 120mm (2’’ to 4.7'') | |
| Edge Seal width | 5 to 10mm (0.2’’ to 0.4'') | ||
| Film width | ≤520mm (21.3'') | ≤730mm (28.7'') | |
| Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
| Power Consumption | 3KW | 4KW | |
| Compressed Air Requirement | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) | ||
※Above parameters are able to be customized properly as requests.
Our Services
1. Your inquiry will be replied within 12 hours.
2. Well-trained & experienced sales can communicate with you in English.
3. Machine comes with English user manual,we can also send you operation video frequency demonstration if needed.
4. All machines have 100% warranty and lifetime maintenance.If machine has any problem(except for wearing parts broken and man-made damage) within warranty time,we can send you new spare parts for replacement.
5.We have professional engineering teams who can design the individual products and provide best packaging solutions to meet your requirements.
Company Information
The company is a professional packing machinery manufacturer.We are specialized in packaging machine,filling machine,labeling machine,capping machine,coding machine,sealing machine etc,if needed,we can also provide you packing material(such as packaging paper/film,ink ribbons,sealing tape,label and so on).
Our products are top quality and high efficient with competitive price,widely and efficiently applied in food,beverage,cosmetic,pharmacy,agriculture,and chemical industries,they sell well both at home and abroad.
Warmly welcome customers and friends from all over the world to contact us,your trust and satisfaction are our biggest momentum forward.
