Product description
For Potato chips, Biscuits, Pasta, Nuts, Beans, Popcorn, Cereals, Extruded Snacks, Confectionery, Dried & Frozen fruit, Pills, Electronics, Hardware, Toys

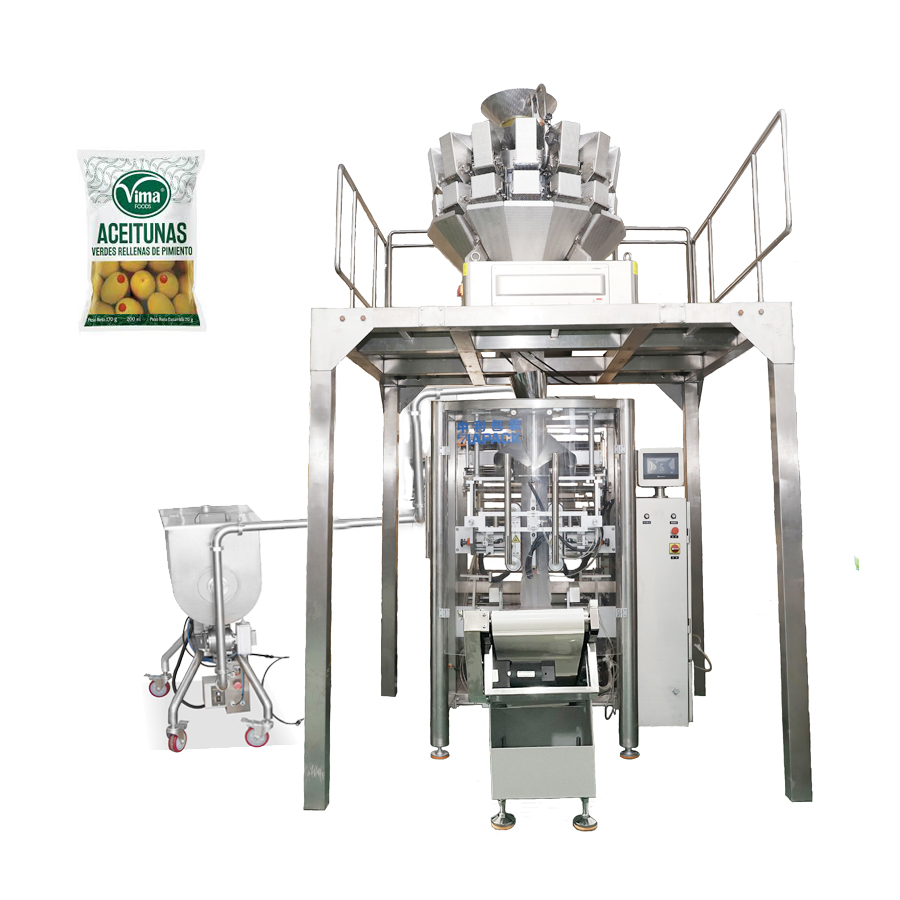

Integrated packaging system, including Z shape bucket loading conveyor with vibratory feeder, weigher platform with stair unit, Multi-head weighing system, automatic bag making machine and accessories units.
Features
- High-speed capabilities up to 90 packs per min
- Variety of package styles including pillow bag, gusseted bag, block bottom bag, vacuum bag and valve applicators
- With the ZVF-Q series the production of block bottom bag sealed at the 4 edges for more stability (quad seal pack) is available.
- Omron controls as standard
- User-friendly interface
- Rapid changeover
- Stainless steel systems
- Customized to meet your production, package style and economic requirements
Technical parameters
| Measuring range | 100-3000g |
| Measurement accuracy | ±1 |
| Bag Type | Pillow bag,gusseted bag ,square bottom bag (Handle holes ) |
| Operation Mode | Intermittent |
| Speed | Up to 50 bags/min |
| Bag Length | 100-380mm |
| Bag Width | 80-250 |
| Side width | 35-90mm |
| Reel Film Width | 520mm |
| Film Thickness | 0.04-0.12mm |
| Packing material outer diameter | Ф450mm |
| Packaging materials Neijin | Ф75mm |
| Voltage | AC 380V/ 50HZ，1phase or per customer needs |
| Power Consumption | 3KW |
| Compressed Air Requirement | 0.6MPa，0.36 M3 / Min |
| Dimension | 2252x2559x3474mm（L x W x H） |
| Weight | 1900KG |
FAQ
Q1: Can you send me the installation video of this machine?
A1: Yes, please check the link for this video
Q2: What is the material of contact food/material parts?
A2: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q3: Can this machine make different bag sizes?
A3: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q4: Does your company accept OEM?
A4: Yes, we have a professional design and technical team to accept customization.
Q5: When you can deliver the machine after the order is placed?
A5: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.
Q6: How about your warranty?
A6: We provide 13 months warranty, starts from the issue date of bill of lading.
Q7: What can you provide after service?
A7: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training.
