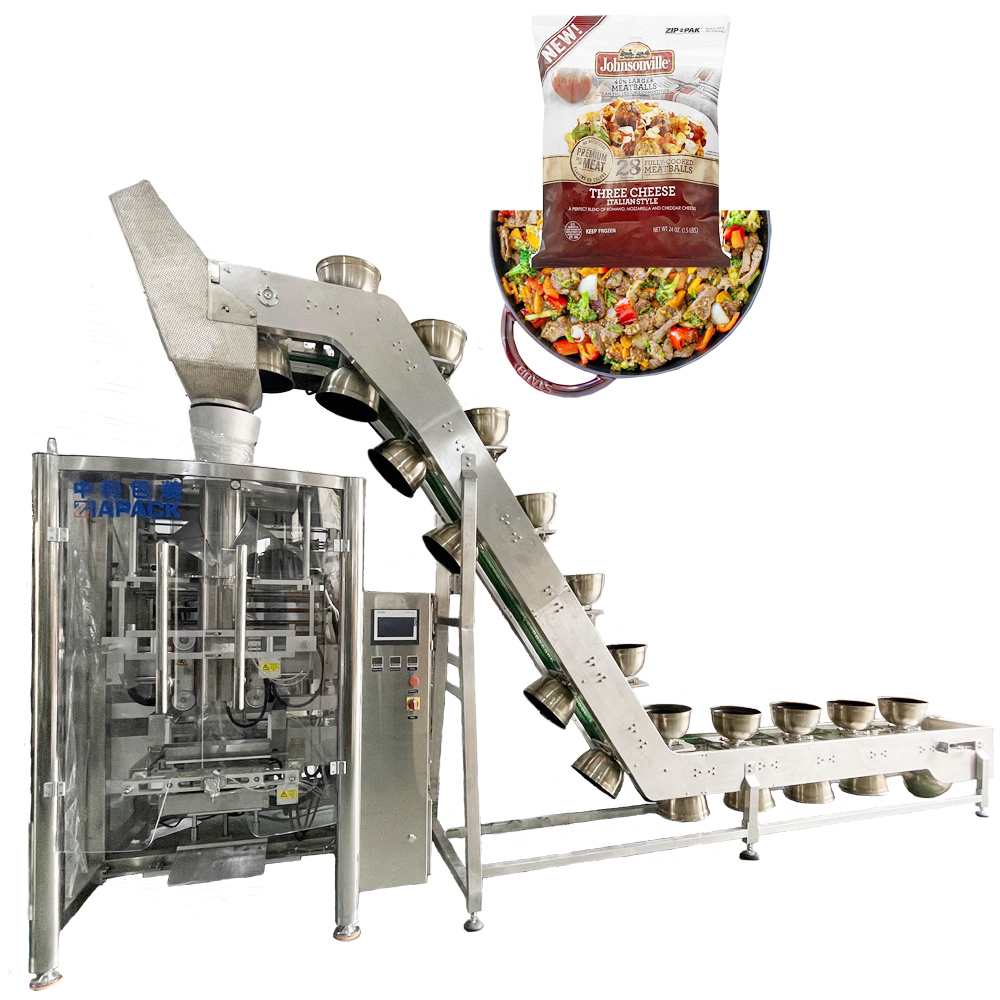

This machine unit is special design for packing Leafy vegetables and othe pre-cooked food with soup.Use the bowl bucket for transfer the product and match with ZL520/720 Vertical bag forming filling sealing packaging machine .Widely use for packaging Lettuce chinese cabbage cauliflower and so on
Working Processes :
Feeding--Conveying--Weighting--Forming ( Filling--Sealing ) --Finish Products Conveying
1. English and Chinese screen display,it is simple to operate.
2. The function of PLC computer system is more stable, and it's more easy to adjust any parameters.
3. It can stock ten datas, and it's simple to change the parameters.
4. Sever motor drawing film, which is good to accurate location.
5. Independent temperature control system, the precision is accurate to ±1°C.
6. Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type, punching etc.
8. Bag-making, sealing, packing, printing date in one operation.
9. Quiet work circumstance, low noise
CE - Certificate of Conformity, Certificate of Incorporation (available as an option)
|Bag Type||Pillow bag, Gusseted bag/Flat bottom bag|
|Speed||Up to 100 bags/min|
|Reel Film Width||730mm|
|Reel Outer Dia||Ф450mm|
|Reel Inner Dia||Ф75mm|
|Voltage||AC380V/ 50HZ，3phase or per customer needs|
|Compressed Air Requirement||0.6MPa，0.36 M3 / Min|
|Dimension||1600x1217x1680mm（L x W x H）|
|Sealing Patterns||Checkerboard pattern|
|Flat line pattern|
|Other customized pattern|
|Sachet Cut-off Shape||Flat cut-off|
|Linking pouch cut-off|
|Tear Notch||To make tear notch with specific shape|
|Code Printing||Pressing type coder built-in|
|Ribbon code printing|
|Code inkjet printing|
|Hang Hole||To make hang hole with specific shape|
|Dust Collecting Device||To collect the dust during dosing|
|Inflating & Deflating||Air / Nitrogen Inflating|
|Packaging Film Correction Device||To ensure correct movement of the packaging film|
