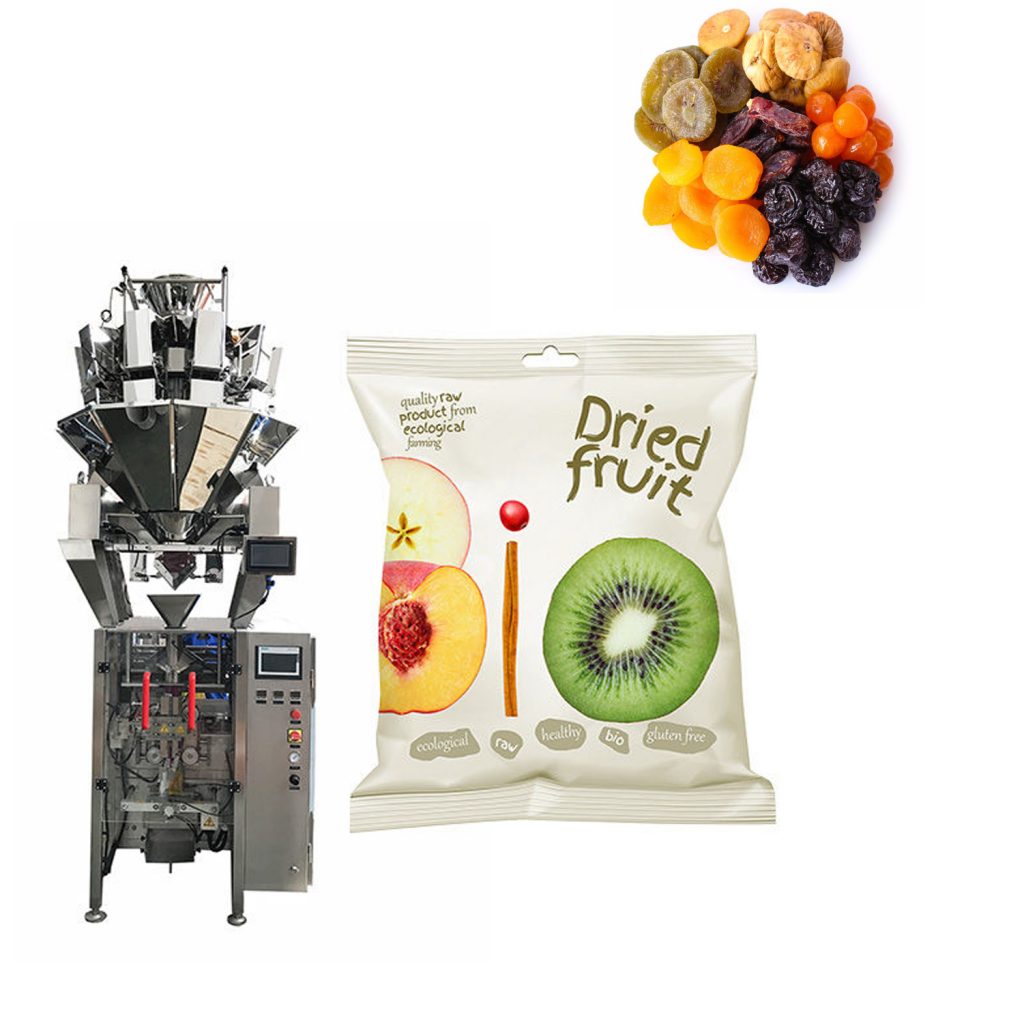

Applications
It is suitable to pack different kinds of products: dried fruit,puffy food, shrimp roll, peanut, popcorn, cormeal, seeds, sugar, hardwares and etc., which is in roll, slice and granule forms
Features
- High-speed capabilities up to 80 packs per min
- Adjustable capacity from 50-250ml; 250-500ml, 500-1000ml is optional
- Accuracy 0.2 to 2g
- Omron controls as standard
- User-friendly interface
- Film track by photo-electric eye & encoder
- Servo driven for film transport
- Stainless steel systems
- Small footprint, Compact, robust and long-life construction
- Customized to meet your production, package style and econoic requirements
Optional Device
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications
| Model | ZL320 |
| Weighing Range | 10-500 grams |
| Bag Size | 120-200mm(L) ; 60-150mm(W) |
| Bag Style | Pillow Bag; Gusset Bag; |
| Bag Material | Laminated film; Mono PE film |
| Film Thickness | 0.04-0.09mm |
| Speed | 20-80 bags/min |
| Accuracy | + 0.1-1.5 grams |
| Weigh Bucket | 1.6L or 2.5L |
| Control Penal | 7" or 10.4" Touch Screen |
| Air Consumption | 0.8Mps 0.4m3/min |
| Power Supply | 220V/50HZ or 60HZ; 18A; 3500W |
| Driving System | Stepper Motor for scale; Servo Motor for bagging |
Multi-head Combination Weigher
MCU Control, 10heads, 1.6L hopper
1. Select the best combination immediately from diversified weight combination through computer
with perfect combination of high precision and high speed.
2. High precision data-type weighing sensor realizes precise weighing.
3. Liquid crystal screen operating system in multiple languages such as Chinese and English,etc.
4. IP65 grade water-proof and dust-proof design . It’s clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.
5. It can fine the opening and closing speed of hopper door according to the feather of items to be
weighed , and prevent crushing and blocking of material .
6. With powerful digital automatic counting function. It can record the index for each batch such as
total bag number , pass rate and difference of single bag, etc.
7. Optional devices: trigliyph balance ball, suction hopper, printing device, tolerance sorting
device.
8. All kind of grain material, sheet material and abnormity material, such as candy, melon seeds,
chips, peanuts, nutlet, preserved fruit, jelly, biscuit, confect, comper foodstuff, dilatant foodstuff,
hardware.
Additional Info
Weighing Range:10‐1000g
Accuracy:±0.5‐1.5g
Weighing Speed:Max. 65 Drops/Min
Hopper Volume:1.6L
Driver:Step Motor
Options:Timing Dipper, Printer, Diverter Device, Rotary Top Cone
Control Panel:10.4 inches large touch screen
Power Requirements:220V,50/60HZ,10A,1KW
Machine Weight:380KG
Packing Dimension:L1620 X W1100 X H1100MM
