Automatic detergent powder packing mchine, it is a machine special made for packing detergent powder, wash powder , soap powder into bag, it is an idea packing machine for packing deteregent powder in bag.
Why we recomment the vertical form-fill-seal packing machine for packing deterger powder soap powder, washing powder ?
√ 1. By one machine, it finish the works of automatic bag forming, detergent powder dosing and filling, bag sealing, and coming out finished product from the packing film roll.
√ 2. Vertical structure, it is save floor space of factory.
√ 3. Only one worker is needed to opearate on the machine, it save labor cost.
√ 4. PLC control sytem , machine performace is stable.
√ 5. Touch screen operation pannle, it is easy to work.
√ 6. Servo motor packing film pulling sytem , it assure good bag forming effect.
How to choose a proper vertical form-fill-seal machine for your detergent powder,wash powder?
1. First, you have to tell about the packing size of your product , i.e. how many grams do you like to pack per bag , and how many different size format do you need to produce .
On the market, we can find different packing size of the detergent powder which is from 100 grams up to 5KG.But such packing size can not be made by one machine becasue every machine have its own working range for different size.
With your packing size information, we can know which is the right model right size machine to make your product.
2. And there are different finished bag shape for the wash powder, detergent powder.
Mainly we can find two bags type on the market, there are Back sealing bag(we call it pillow bag as well), and gusseted sealing bag, please refer to the picture at below:
So need you tell us how do you like to make the bag shape for your product,then we can decide the bag forming system accordingly.
When we get your detailed product packing information and requrimrent, now we can come out the offer of the autoamtic detergent powder packing machine for your product.

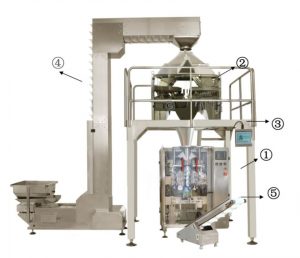

For a fully autoamtic packingly machine , it is made up of the 5 systems as following:
1. Automatic vertical forming-filling-sealing machine
It is main part of the packing machine which process the bag forming, filling and sealing from a packing film roll automatically.
One machine can make different size bags by changing the bag forming tube as long as the bag size is under the workable machine size.
There are 3 most popular models we are making .
You choose the suitable model according to the bag length and bag width according to packing volume.
If your packing size is beyond the parameter of the 3 mentioned models, we can custom-made machine for your product.
Please find the parameter sheet of our main 3 models as following,
|Film Roll Diameter||Max.320mm||Max.320mm||Max.320mm|
|Power||220V 50/60Hz 2KW||220V 50/60Hz 3KW||:220V/5KW|
2. Dosing system for detergent powder/Washing powder
The dosing system is used to dose the required packing weight of product.
Usually, there are 3 type dosing sytstme are used for dosing detergent powder/Washing powder/soap powder.We will equip the most suitable dosing system accoding to the exact powder features.
Linear Electrinic weigher dosing system
It is most popular dosing system used for detergent powder.
It is with below advantages:
Dosing range is big, no need change parts for different dosing range.
Vibrating dosing, it won’t make crash of product density.
Measuring cup dosing system, it is good for dry powder .
But every dosing weight, have to change different measuring cups.
If you only make one packing size on the machine.
Auger dosing sytstem
It works for fine detergent powder,the powder is fine, by auger dosing system it makes good dosing accuracy ..
3. Platfrom for installing dosing system
It is an assistand equipment of the automatic deterget powder packing machine which is used to install the Linear Electrinic weigher dosing system above the packing machine.
With this platfrom, worker can walk around the dosing system for doing the maintain and clean works.
It is made by carton steel or stainless steel according to different budget.
4. Z-shape degerter powder feeding system
It is another assistant equipment of the automatic deterget powder packing machine which is used to feed the deterget powder, soap powder to the dosing sytem automatically.
5. Finish product feed out conveyor
This conveyor is used to feed out the finsihed bag which come from the automatic vertical form-fill-seal machine to the next packing machine.
