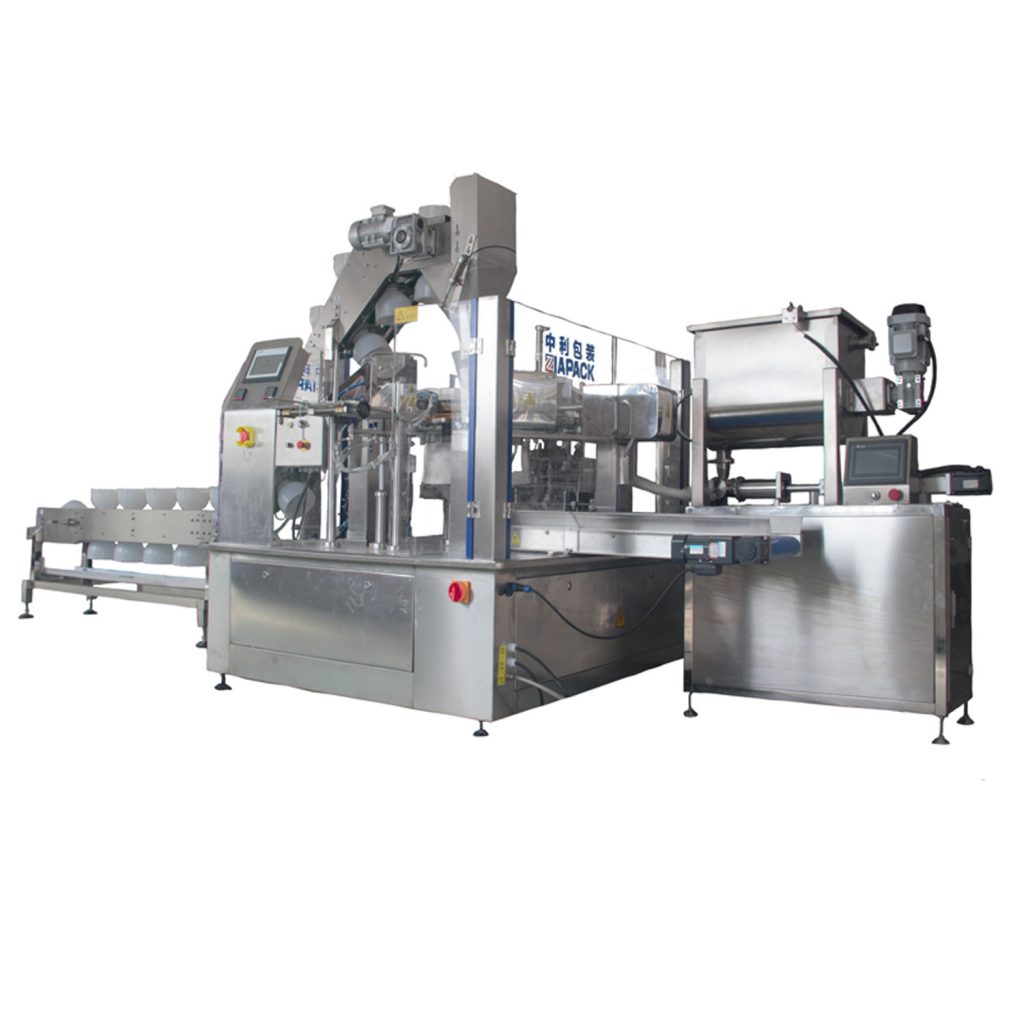

ZL8-230 Automatic rotary packaging machine for pre-made doy bag

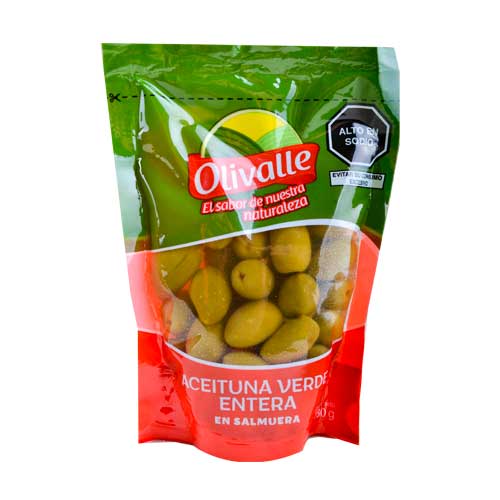

This machine is design for filling liquid product mixed with solid product like ，pre-cooking food like pickles with soup，pickled olives ，pickled cucumbers and so on .With bowl elevator for feeding solid product in to pre-made bag and then piston pump filling sauce .
1、Easy to operate，adopt advanced PLC from Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2、Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4、Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。
5、The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6、It can match with the glass safety door. At the same time, it could prevent dust.
7、Use the plastic bearing, don’t need put on oil, less pollution.
8、Use no oil vacuum pump, avoid polluting the environment in the production.
9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11、With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
|Working position||eight-working position|
|Pouch material||Laminated film|
|Pouch pattern||Doy packer with zipper ,pillow bag，four side sealing bag|
|Pouch size||W:100-200mm L:150-300mm|
|Speed||10-35pouches/min（The speed depends on the product status and filling weight））|
|Voltage||380V 3phase 50HZ/60HZ|
|Compress air||0.4m3/min(supply by user)|
- Touch screen interface
- Language support
- IP65 waterproof and dustproof design
- Program and mechanism diagnostic function
- Auto-selection and one-plus two collecting hopper system
- High precision diagital weighing sensor
- Adjustable opening angle of stepper motor to obtain high precision
- High-Speed and High-Accuracy mode is optional to pick
- Combination bucket could dump orderly to avoid products jam up
- User friendly operation manual could read on the touch screen
- Powerful statistics function, recording every batch production data
- Pieces counting function
- Enclosed stainless steel construction
|Bag style||Quad Seal Bag, pillow and gusset bag|
|Bag length||Up to 340mm (13.4’’)||Up to 420mm (16.5'')|
|Bag width||80 to 200mm (3.1’’ to 7.9’’)||100 to 240mm (4’’ to 9.4'')|
|Bag Side depth||50 to 100mm (2’’ to 3.9'')||50 to 120mm (2’’ to 4.7'')|
|Edge Seal width||5 to 10mm (0.2’’ to 0.4'')|
|Film width||≤540mm (21.3'')||≤730mm (28.7'')|
|Voltage||AC220V/50Hz, 1phase or Per customer specification|
|Compressed Air Requirement||0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm)|
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
