- Intorduction :This unit machine is special design for packaging liquid and solid mixture product into plastic bag .The machine have the function of automatic bag forming, Solid product weighing, Liquid product measuring and filling .With optional function of exhausting the air inside the bag and then sealing the bag .The machine also have color ribbon for date printer for coding of expiry date and production date.

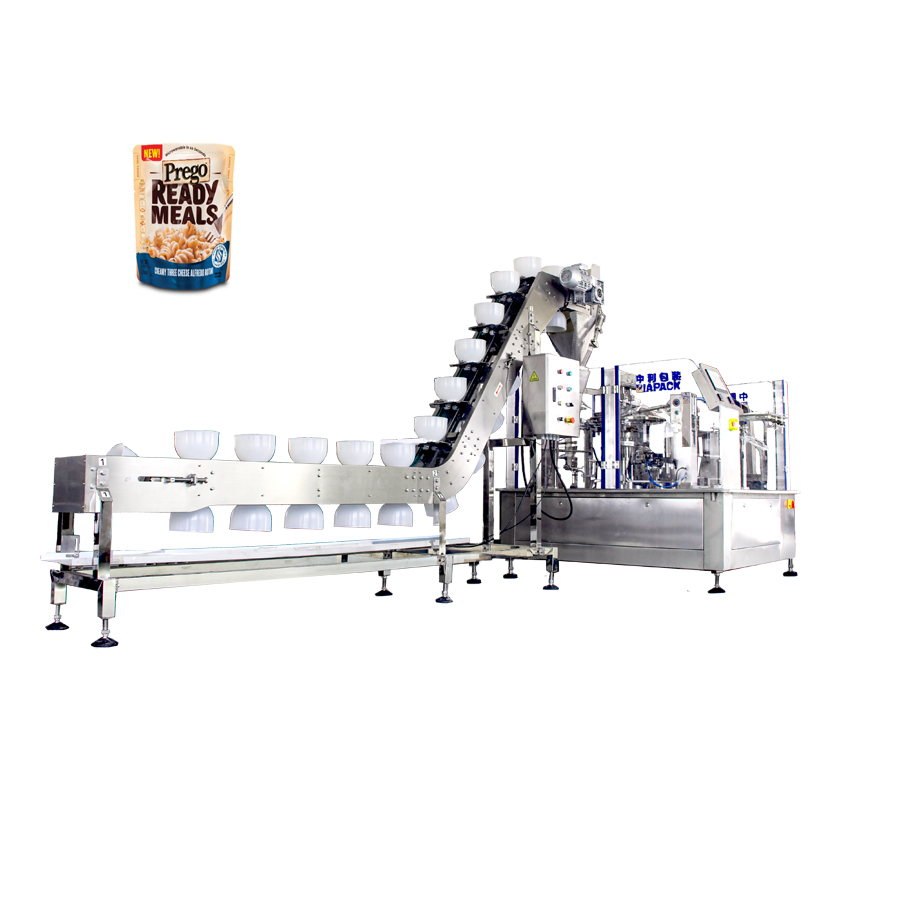

- Model of ZL8-230 Rotary packing machine(PRE-MADE BAG )Function and characteristics1、Easy to operate，adopt advanced PLC from Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2、Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
- Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。
5、The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6、It can match with the glass safety door. At the same time, it could prevent dust.
7、Use the plastic bearing, don’t need put on oil, less pollution.
8、Use no oil vacuum pump, avoid polluting the environment in the production.
9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11、With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Model ZL8-200 ZL8-230 ZL8-260 ZL8-300 Working position
Pouch material Laminated film Pouch pattern Doy packer with zipper ,pillow bag，Gusseted bag ,Quad sealing bag ,3 side sealing bag Pouch size W:100-200mm
Speed 10-35pouches/min（The speed depends on the product status and filling weight）） Weight 1400KGS 1520KGS 1580KGS 1650KGS Voltage 380V 3phase 50HZ/60HZ Total power 2KW 2.2kw 2.5kw 2.5kw Compress air 0.8m3/min(supply by user) 8bar
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. The machine will have 1 year warranty of machine,2 years warranty of electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
