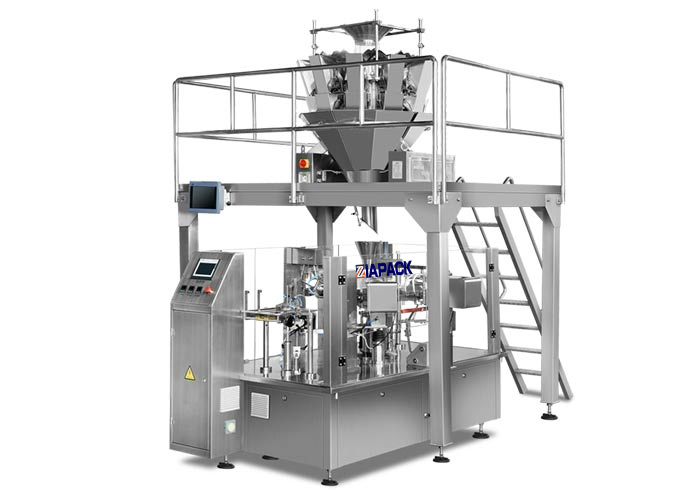

ZL Series rotary type packaging machine for pre-made bag
This unit machine including one set ZLF-5000 linear type weighing machine ,one set ZL6-300 rotary bag taking opening filling sealing machine and one set safety platform and ladder .The main machine are control by PLC and operate by touch screen .Adopt famous Electrical accessories.High automation and easy to operate .Widely use by the different
Function and characteristics
1、Easy to operate,adopt advanced PLC from Siemens, mate with touch screen and
electric control system, the man-machine interface is friendly.
2、Frequency conversion adjusts the speed: this machine uses frequency conversion
equipment, can be adjusted within the range according to the needs of reality in production
3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used
again, avoid wasting packing materials and raw materials.
4、Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。
5、The width of the bags could be adjusted by electrical motor. Press the control-button
could adjust the width of clips, easily operate, and save time.
6、It can match with the glass safety door. At the same time, it could prevent dust.
7、Use the plastic bearing, don’t need put on oil, less pollution.
8、Use no oil vacuum pump, avoid polluting the environment in the production.
9、The packing materials loss low, what this machine is used the preformed bag, the bag
pattern is perfect and has a high quality of the sealing part, this improved the product specification
10、Product or packing bag contact parts adopt stainless steel or other materials which
accord with the food hygienic requirements, guarantee hygiene and security of the food
11、With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer
PE , PP and so on Preformed bag made by film and paper.
Specifications
Model | Bag dimension | Packing speed | Weight range : |
ZL6-200 | W100-200mm L100-300mm | 25-35bag/min | 20g-2kg |
ZL6-300 | W200-300mm L150-350mm | 25-35bag/min | 20g-5kg |
ZL8-200 | W100-200mm L100-300mm | 20-30bag/min | 20g-2kg |
ZL8-300 | W200-300mm L150-350mm | 20-30bag/min | 20g-5kg |
