Applications

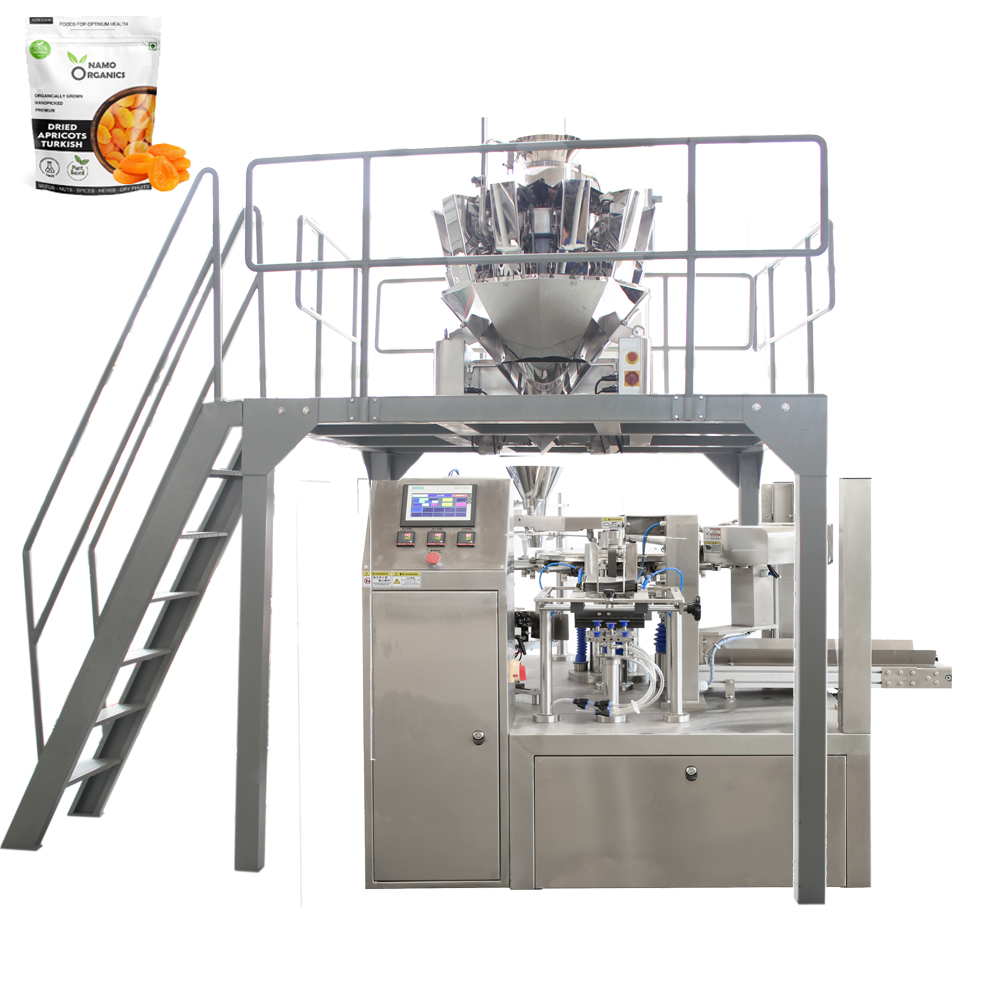

Rotary bag-given packing machine with different dosing (such as multihead weigher, auger filler, liquid filler etc.) can be suitable for the automatic packing for granular, powder, liquid, paste etc. Different kinds of product with the premade stand-up zipper pouch and so on.
Features
Easy To Operate: PLC control, man-machine interface.
Frequency Conversion Speed Regulation: Using frequency conversion adjustment device, the speed can be adjusted at will in the specified range.
Easy to adjust the clip width: Control by motor; Only by a button you can sync control 8 sets of clip.
The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
Open Zipper Mechanism: Design for zipper bag characteristics, high opening rate (invention patent) .
Safety Device
- No pouch or open error, on filling
- No pouch or no filling, no sealing.
- No coding ribbon, Emergency stop and alarm.
- The safety door open, alarm(option)
- The air pressure not enough, alarm.
- The sealing temperature anomaly, alarm
Technical Data
| Model | ZL8-200 |
| Working Position | Eight-Working Position |
| Pouch Material | Lamiated Film,PE,PP |
| Pouch Pattern | Stand-Up Pouch With Zipper |
| Speed | 10-50bag/min |
| Gross Weight | 2100KG |
| Pouch Size | L:100-350mm W:100-210mm |
| Voltage | 380V 3phase 50/60HZ |
| Power | 3KW |
| Compress Air | 0.6m3/min (Supply By User) |
FAQ
Q1:Are you a trading company or manufacture?
A1: Kedi is a professional manufacturer with experience over 20 years. Now we have new factory in Hefei .Your order will be controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 30-45 days upon order confirmation.
Q3: What is your packing pattern?
A3: Special export wooden packing
Q4: How about your service?
A4:Engineers available to service machinery overseas
Q5: How about your product?
A5: iapack has the standard production and complete quality control system to ensure high quality products. Our products get ISO. CE.SGS.IAF
Q6:How to choose the machine type for our bags?
A6: Pls support us the following information about the bag and the food.
1) bag pattern
2)bag size
3)the filling weight or volume
4)material of food: powder/ liquid/ paste/ granular/ massiveness
5)sample bags or pictures
