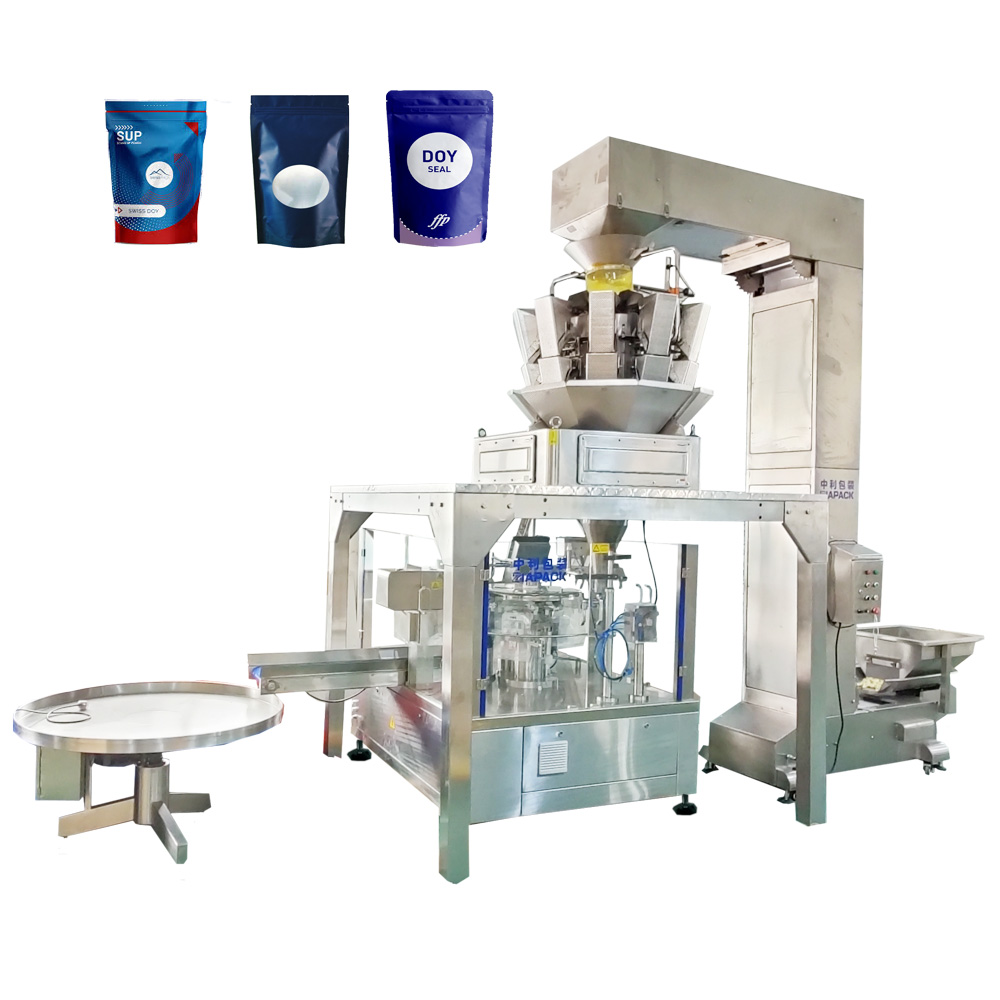

Equipped with Z-shape bucket elevator and combination scale, it is widely applied to candies, microwave popcorn, cookies, nuts, rice, coffee beans, crops, peanuts, etc.
Option: Nitrogen Flush, Vacuum, Multi-Filling, Spout Pouch (Conner or Center), Zip Pouch
- Easy To Operate:PLC control, man-machine interface.
- Frequency Conversion Speed Regulation:Using frequency conversion adjustment device, the speed can be adjusted at will in the specified range.
- Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.
- The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
- Open Zipper Mechanism:Design for zipper bag characteristics, high opening rate (invention patent) .
This product has been excellent engineers carefully study design, the use of microcomputer control of optical technology, high accuracy, fast, good quality, solve the traditional tea packaging tedious process. An automatic dosers several labor equivalent amount of tea production and tea shop is a good helper.
Suitable for tea, food, food, seeds, fruit, grain shape chemicals and pharmaceuticals, micro and small components such as general non-sticky solid materials.
- Pouch Type:Spout Bag, Zipper Bag, Pillow Bag, 3 Side Bag, 4 Side Bag
- Working Station:8 Working-Station
- Filling Range:5-1500g
- Pouch Width:80-240mm(3.15”-7.87”)
- Pouch Length:100-300mm(3.94”-11.8”)
- Capacity:Up to 50 Bags/Min(Depends on products’ natures and filling weight)
- Dosing System:, Linear Scales
- Power Supply:Per customer specification
- Power Consumption: 3.5KW
- Compressed Air:400 L/Min. Zip Function 580 L/Min.
- Machine Dimension:2000x1200x1400mm (78.7'x47.2'x55.1')
- Machine Weight:1850Kg
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: We supply spare parts with competitive price after warranty time.
