Applications

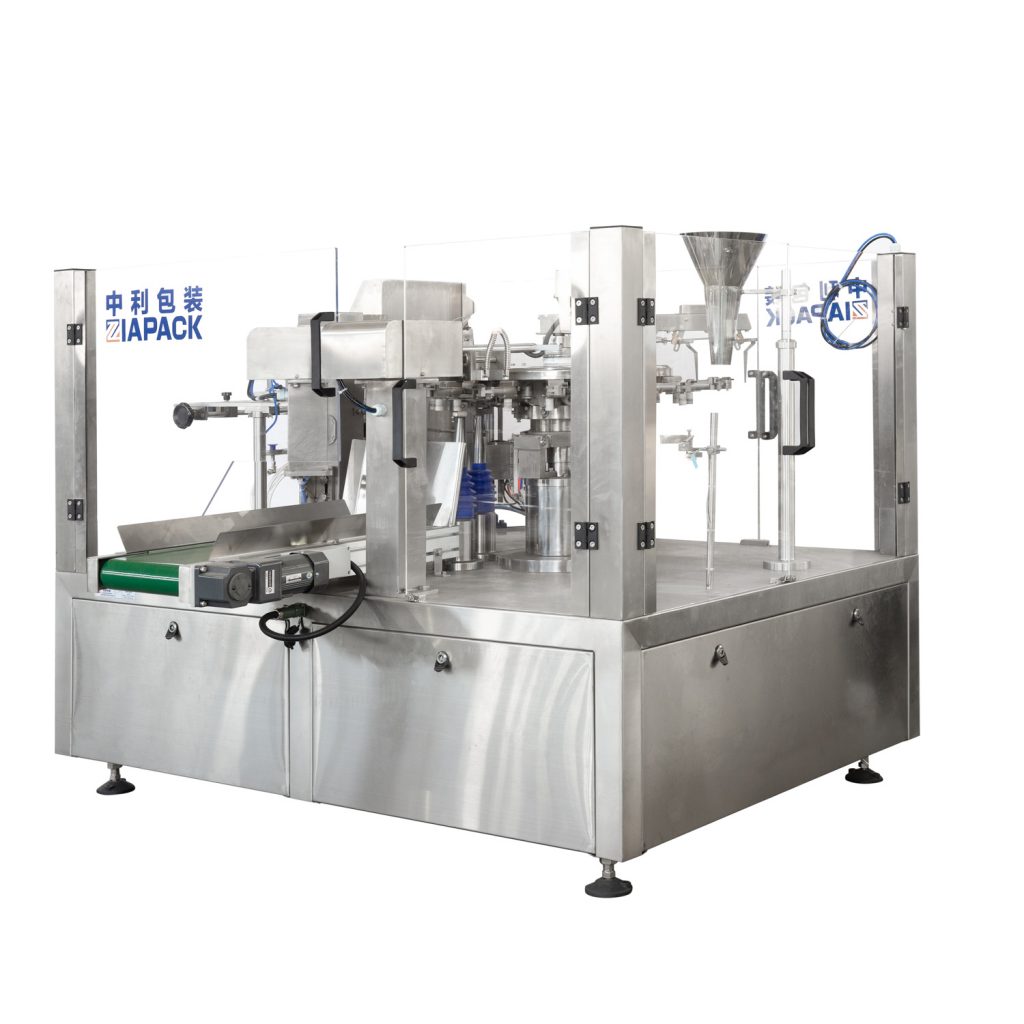

ZL Series Rotary bag taking opening filling packaging machine for stand-up pouch ,zipper bag ,doy bag .Widely used for Milk powder, coffee powder, food additives, condiments, tapioca powder,coconut powder, pesticide powder, fertilizer granules etc packing .
Features
1,Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2,Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3,Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4, Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
5,It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.
Technical Data
| Working position | eight-working position |
| Pouch material | Laminated film PE,PP |
| Pouch pattern | stand-up&zipper pouch |
| Pouch size | W:100-210mm L:100-350mm |
| Filling Scope | 10-5000g( The screw attachment is to be changed) |
| Weight Accuracy
| Package weight ≤ 100g, with an error≤±2% 100 — 500g |
| Speed | 10-45pouches/min(The speed depends on the product status and flling weight)) |
| Voltage | 380V 3phase 50HZ/60HZ |
| Total power | 8.5KW |
| Compress air | 0.6m3/min(supply by user) |
