Product description

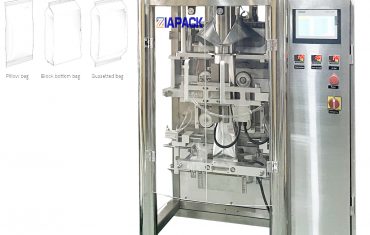

This is vertical bag forming filling packaging machine .The machine can reach the function of roller film holding ,pulling ,date coding ,bag forming ,product filling ,bag sealing and bag counting .Matching with different product it can use for packing different product like powder ,liquid ,sauce, granuler food and so on .
Features
- User friendly PLC & Touch Screen interface
- Language support
- Fault alarm shut down and message display
- Easy synchronization with peripheral equipment
- Fully interlocked guarding system
- Rugged , durable equipment to withstand severe environment
Technical Specifications
| Bag style | pillow bag; Gusseted or block bottom bag (Option) |
| Bag length | Up to 260mm |
| Bag width | 80-200mm |
| Film width | ≤420mm |
| Voltage | AC380V/50Hz, 1phase or Per customer specification |
| Power Consumption | 3KW |
| Compressed Air Requirement | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) |
Our Services
1. we have 24 hours service.
2.One year warranty and Lifelong after sales service.
3.Provide you Quality Control in processing line.
4.OEM service is avaliable,and provide technology supporting in products, we are in 10+ years exporting experience.
FAQ
1. For providing exact quote, below information is needed.
What to pack?
What bag shape?(Pillow bag,guesset bag or quad bag)
What is the bag dimension or film width?
What is the packing volume and net weight?
What kind of film material?
2. What is the delivery time?
About 25-35 days for standard machines.
3. What about installation and commissioning?
Our price does not include the installation and commissioning charge. The buyer should pay for the round-ticket, visa charge, food and accommodation if installation is need.
4. Any training or after sale service?
Training of machine operating and machine maintaining in our factory is free.
Technical help via internet is free.
