Applications

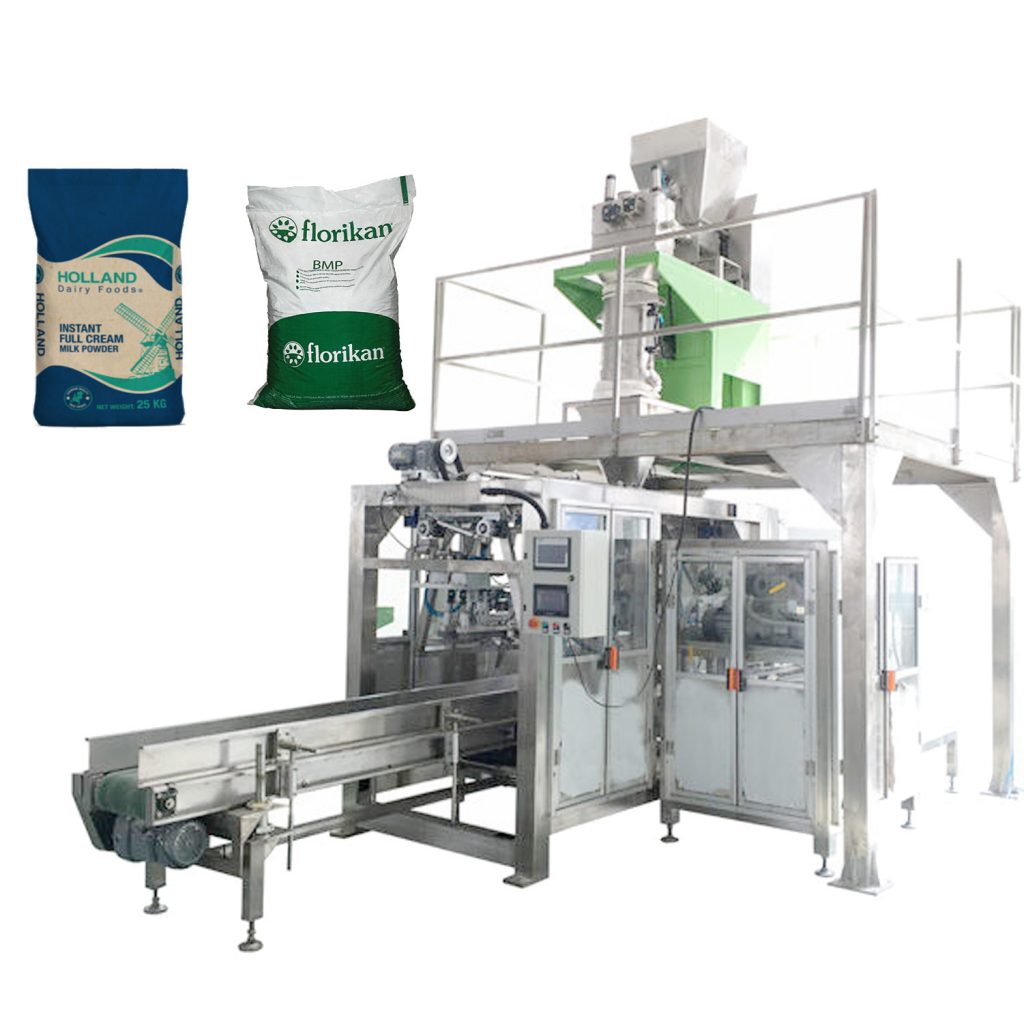

ZLCP-50P Automatic powder bag feeding packaging machine unit is specially suitable for powdery material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-50kg, the maximum speed can reach 3-8bags/min. High efficiency, advanced design suitable for various requirements.
Features
1 The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
2 Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
3 Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
4 The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Technical Data
| Packaging material | prefabricated woven bag (lined with PP/PE film) |
| Size of bag making | (700-1100mm)x(480-650mm) LXW |
| Measuring range | 25-50KG |
| Measurement accuracy | ±50G |
| Packaging speed | 1-4bags/min (slight variation depending on the packaging material, bag size etc.) |
| Ambient temperature | -10°C~+45°C |
| Power | 380V 50HZ 15Kw |
| Air Consumption | 0.5~0.7MPa |
| External dimensions | 5860x2500x4140mm (L x W x H) |
| Weight | 1600kg |
Characteristic of powder packing machine
1.This machine adopts the computerized metering device, thus it can weight accurately, perform stably and be operated easily.
2. The body of this machine is completely sealed and also it is furnished with dedusting opening. Its structure is reasonable and durable and may realize environmental production in the true sense
3.This machine is small in volume, low in weight and convenient for adjusting and maintaining; besides, thanks to its mechatronics, it can save electrical energy.
4.MG series packaging machine can be classified into impeller type and screw type according to their material discharging mode;
5.Wide application: This machine can be applied not only in the packaging of dry mortar but also in the packaging of other powder or particle materials, just as cement, dry mortar, fly ash, lime, calcium carbonate, talcum powder, gypsum, bentonite, kaolin, carbon black, alumina, fire materials powder, granule materials and so on.
