Description

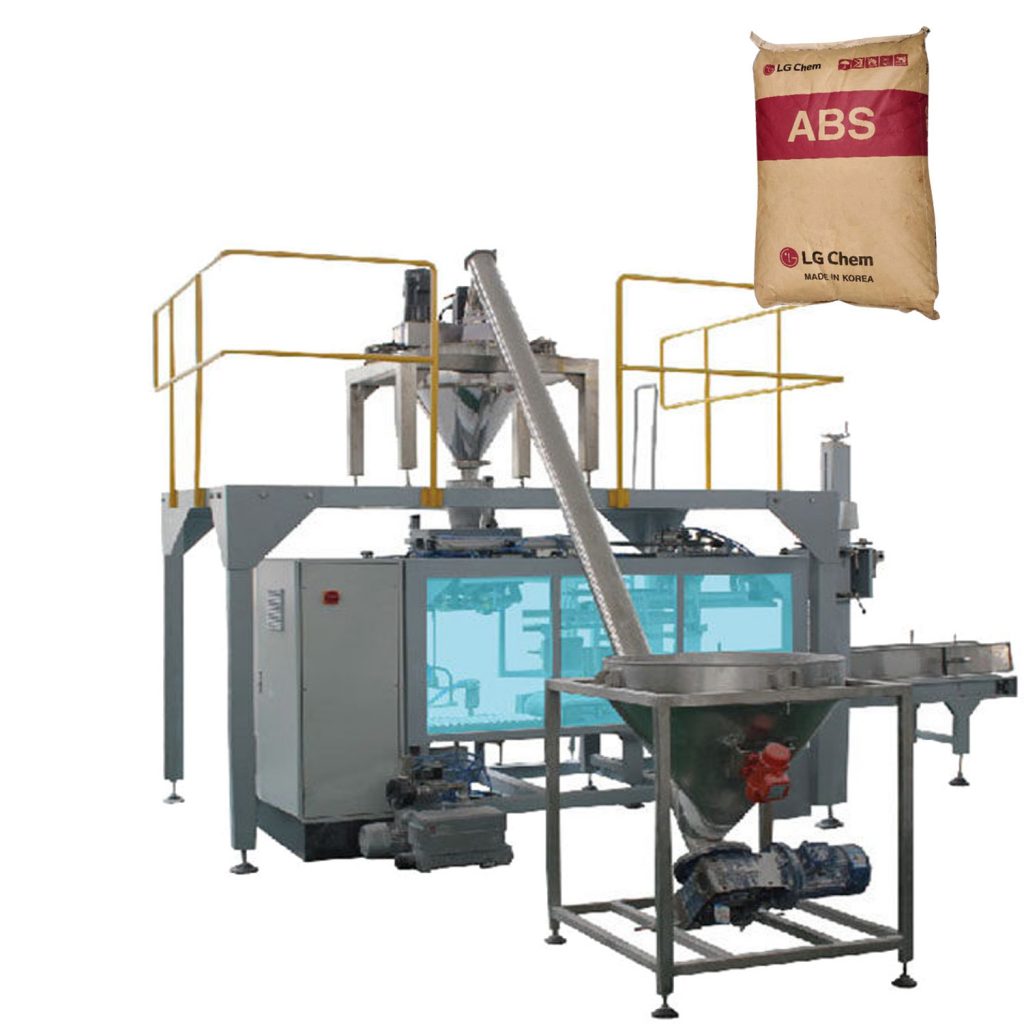

ZLCK-G Automatic powder bag feeding packaging machine unit is specially suitable for powdery material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-25kg, the maximum speed can reach 3-8bags/min. High efficiency, advanced design suitable for various requirements.
Configuration explanation
1 The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
2 Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
3 Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
4 The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Mechanism component
1 Automatic picking-up bag system: Automatically pick up the prepared bag.
2 Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
3 Hugging bag and conveying mechanism: Hugging bag and conveying bag.
4 Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)
5 Electrical control part: Completely control the whole packaging unit.
6 Automatic weighing machine: ZTCK-G screw weighing machine
7 Conveyor: Convey material automatically
Technical parameters
Packaging material | prefabricated woven bag (lined with PP/PE film) |
Size of bag making | (630-1100mm)x(350-650mm) LXW |
Measuring range | 10-50KG |
Measurement accuracy | ±50G |
Packaging speed | 3-8 bags/min (slight variation depending on the packaging material, bag size etc.) |
Ambient temperature | -10°C~+45°C |
Power | 220V 50HZ 3Kw |
Air Consumption | 0.5~0.7MPa |
External dimensions | 5860x2500x4140mm (L x W x H) |
Weight | 1600kg |
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 100 US dollars daily service fees and travel expenses.
