Applications

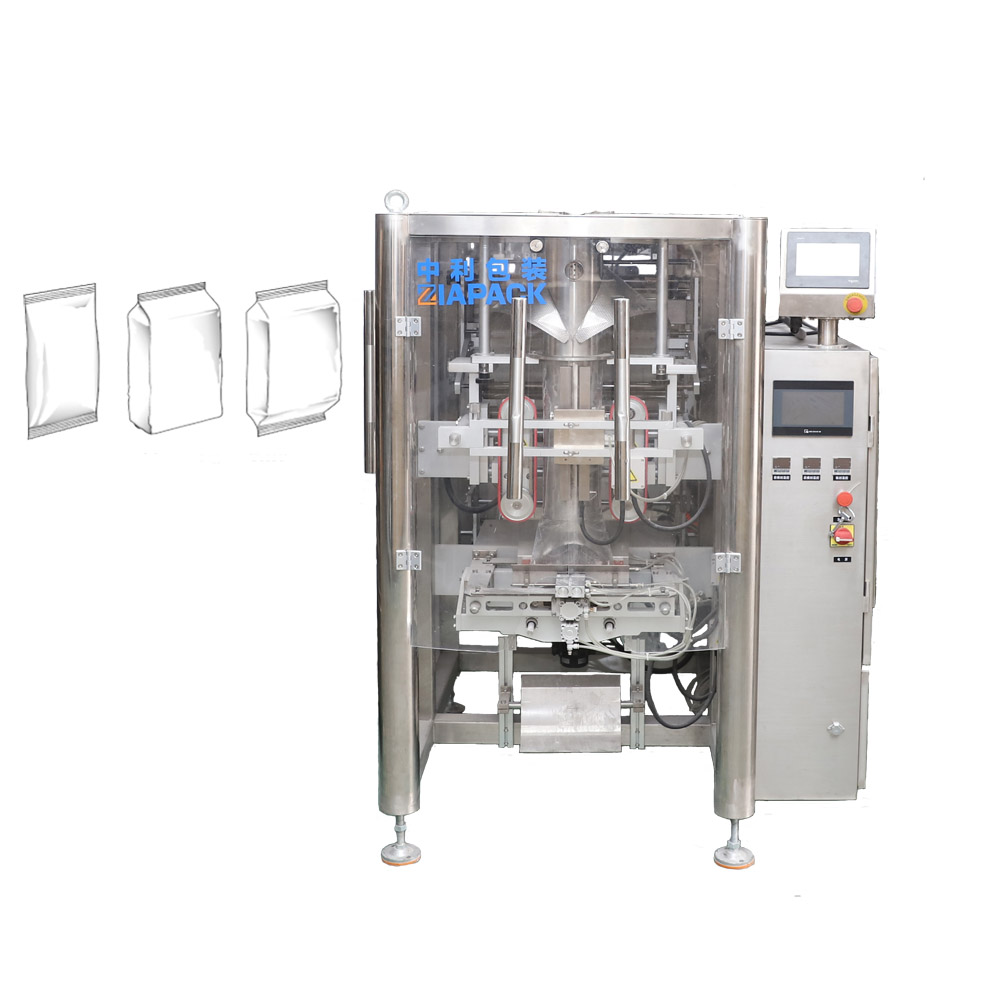

Automatic vertical form fill seal packing machine is suitable to pack a wide range of high accuracy and easy fragile product, such as pet food, fish feed,corn flakes, snacks, breakfast cereals, popcorn, rice, jelly, candy, fried pellet, chips, bean, seeds, dry nuts, etc.
Applicable Pouches: Pillow / back sealing /flat pouch, 3/4 side sealing pouch,stick/triangle pouch,gusseted/quatro pouch.
Working Processes :
Feeding--Conveying--Weighting--Forming ( Filling--Sealing ) --Finish Products Conveying
Features
1. English and Chinese screen display,it is simple to operate.
2. The function of PLC computer system is more stable, and it's more easy to adjust any parameters.
3. It can stock ten datas, and it's simple to change the parameters.
4. Sever motor drawing film, which is good to accurate location.
5. Independent temperature control system, the precision is accurate to ±1°C.
6. Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type, punching etc.
8. Bag-making, sealing, packing, printing date in one operation.
9. Quiet work circumstance, low noise
CE - Certificate of Conformity, Certificate of Incorporation (available as an option)
Technical Data
| Model | ZL720 |
| Bag Type | Pillow bag, Gusseted bag/Flat bottom bag |
| Operation Mode | Intermittent |
| Speed | Up to 100 bags/min |
| Bag Length | 80-380mm |
| Bag Width | 80-350mm |
| Reel Film Width | 730mm |
| Film Thickness | 0.04-0.12mm |
| Reel Outer Dia | Ф450mm |
| Reel Inner Dia | Ф75mm |
| Voltage | AC380V/ 50HZ，3phase or per customer needs |
| Power Consumption | 5KW |
| Compressed Air Requirement | 0.6MPa，0.36 M3 / Min |
| Dimension | 1600x1217x1680mm（L x W x H） |
| Weight | 800KG |
Optional Item:
| Optional Features | Options/Description |
| Sealing Patterns | Checkerboard pattern |
| Flat line pattern | |
| Other customized pattern | |
| Sachet Cut-off Shape | Flat cut-off |
| Serration cut-off | |
| Linking pouch cut-off | |
| Tear Notch | To make tear notch with specific shape |
| Code Printing | Pressing type coder built-in |
| Ribbon code printing | |
| Code inkjet printing | |
| Hang Hole | To make hang hole with specific shape |
| Dust Collecting Device | To collect the dust during dosing |
| Inflating & Deflating | Air / Nitrogen Inflating |
| Air deflating | |
| Packaging Film Correction Device | To ensure correct movement of the packaging film |
