Applications
Film materials:Avariety of laminated films,single-layer PE film,film thickness range 0.04mm~0.15mm
Packing materials:A variety of recreation food,deep frozen food,milk powder,coffee,oatmeal,granulated sugar,salt,puffed food,rice,herbal,tea,small hardware etc
Features

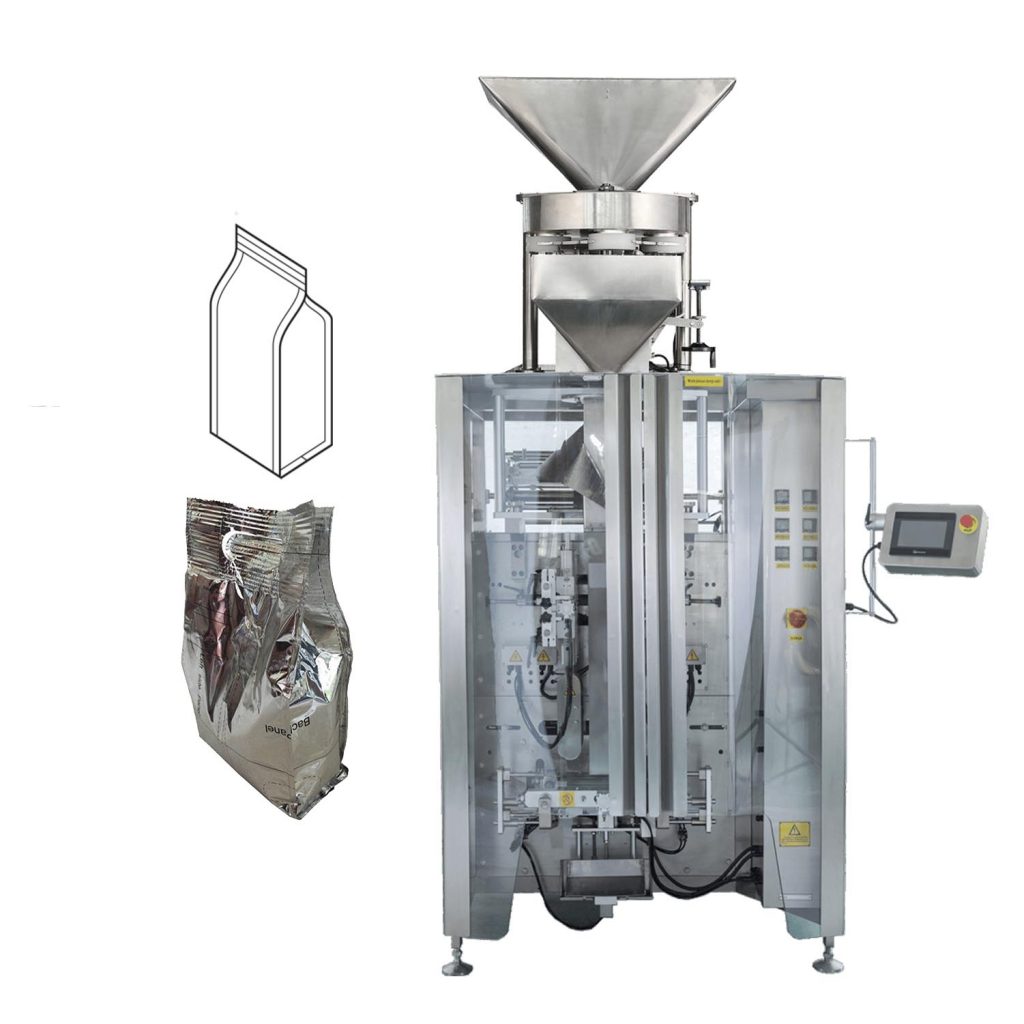

Automatic multihead weighing and vertical packaging combine in one unit(2 in 1 technology),control by PLC
Automatic alarm when machine with breakdown
The combination of high accuracy weighing and high speed weighing
One frame,one control panel,one electric cabinet form one machine;easy for clean and maintance
Equiped with optical tracking devices
The film pulling drive by server,with high speed and efficency
Space saving and high cost performance
Technical Specifications
Packing speed(MAX): 20-30bags/min(depend on the weight from250gram-1000gram)

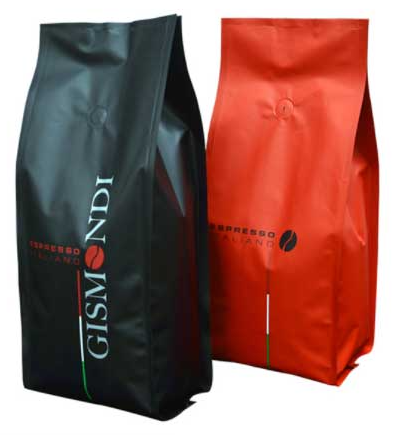

Bag type: Quad bag with degassing valve
Bag size: Front width: 70-180 mm; Side width:40-80mm Side welding width :5-10mm Length: 100～380mm
Compressed air consumption: 0.6 MPa 350 L/min
Electric requirement: 380V/6.5 kW50 Hz
