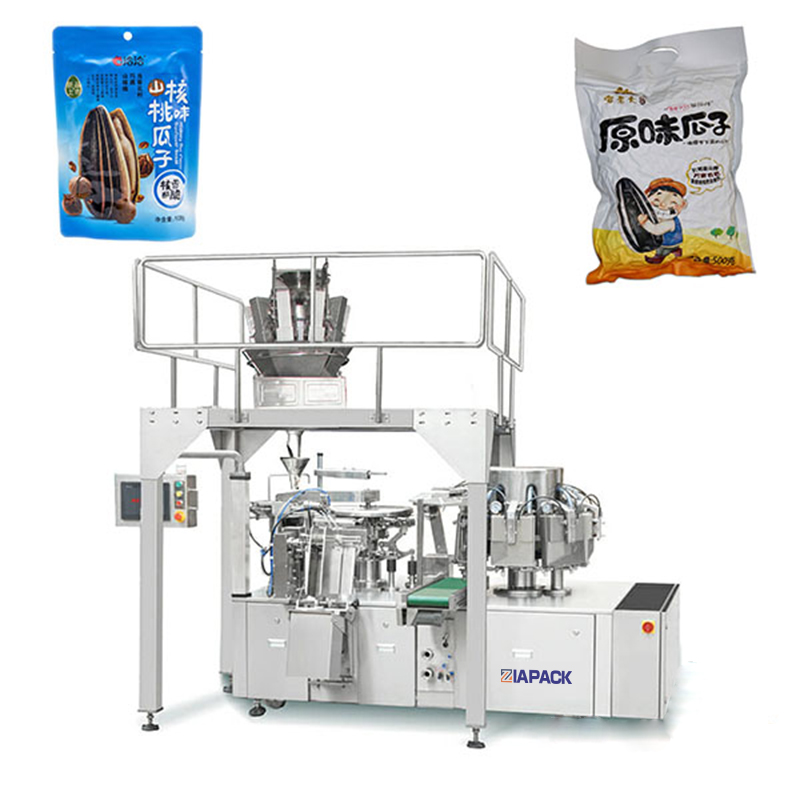

Nut vacuum packaging machine is a fully automatic packaging machine. It is a new type of nut vacuum packaging machine developed by adding a rotary vacuum system to the bag type nut packaging machine. Its working process is: first use the Z-type feeding device, transport the material to the electronic combination scale for weighing, and then pass the material, filling and sealing. When the previous bag-feeding packaging machine reaches this step, it directly seals and outputs the product. But the difference of the melon seed vacuum packaging machine is that the material is electronically weighed, and after filling the bag, it is not directly sealed, but the bag is transported to the vacuum system through the turntable device for vacuuming, and the sealing output is performed after the vacuum is exhausted.
Packing size 70-250mm
Filling range 10-2500g
Packing speed 45-65 packs/min (depending on materials)
Measurement average accuracy ≤±1%
Total power 2.5KW
Overall dimensions 1900mm X 1570mm X 1700mm (length X width X height)
Packaging materials Stand up bag/stand up bag/handbag/pot pocket/zipper bag/composite bag, etc.

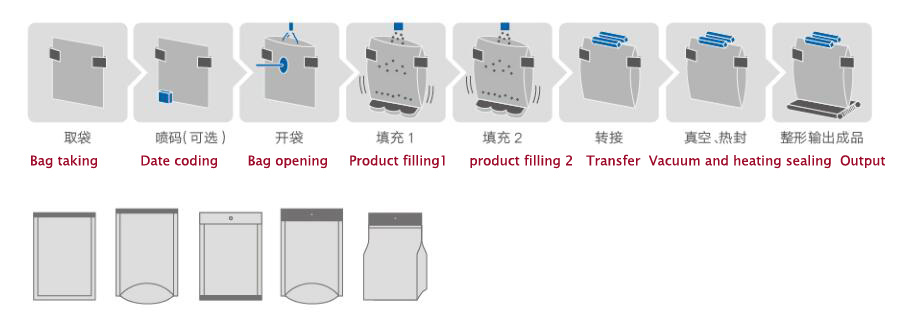

Workflow: bagging→printing production date→opening bag→filling 1→filling 2→vacancy→heat sealing→shaping and output
